STMicroelectronicsSwitzerland

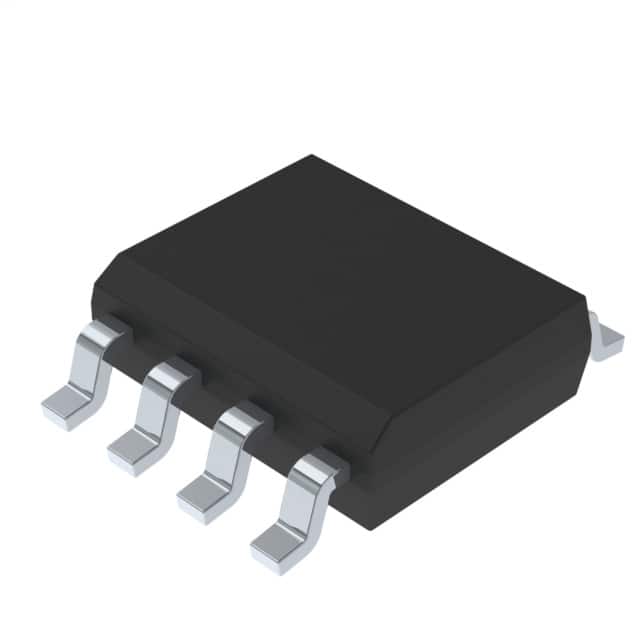

IC OPAMP GP 2 CIRCUIT 8SOIC
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage3 ~ 30 V
Gain bandwidth product700 kHzTyp
Input offset voltage2 mVTyp
Quiescent current700 µATyp
Channels2
| Power | |
|---|---|
| Current - Input Bias | 20 nA |
| Current - Output / Channel | 30 mA |
| Current - Supply | 700µA |
| Voltage - Supply Span (Max) | 30 V |
| Voltage - Supply Span (Min) | 3 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 700 kHz |
| Slew Rate | 0.6V/µs |
| Voltage - Input Offset | 2 mV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Amplifier Type | General Purpose |
| Base Product Number | LM2904 |
| Mfr | STMicroelectronics |
| Number of Circuits | 2 |
| Output Type | Single-Ended |
| Product Status | Active |
| Series | - |
