Texas InstrumentsUnited States

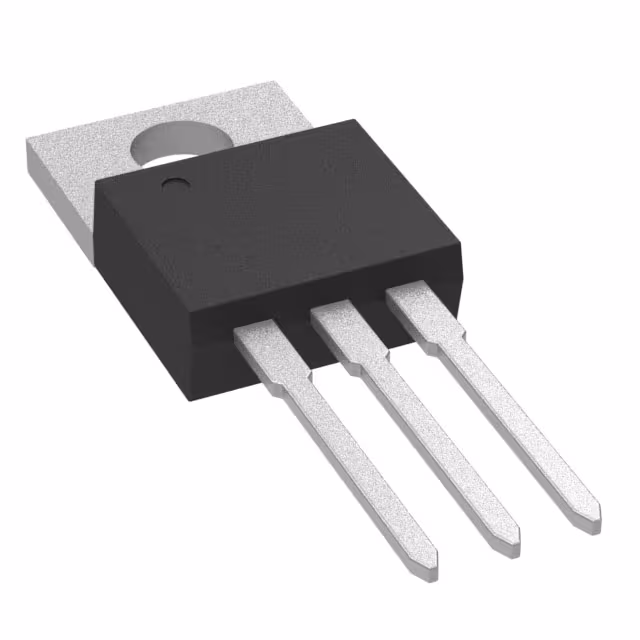

IC REG LIN POS ADJ 1.5A TO220-3
All alternatives
View full reportTechnical parameters
Key specs
Output voltage1.25 ~ 57 V
Output current1.5 AMax
Input voltage≤ 60 V
Quiescent current12 mATyp
| Power | |
|---|---|
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 12 mA |
| Voltage Dropout (Max) | - |
| Voltage - Input (Max) | 60V |
| Voltage - Output (Max) | 57V |
| Voltage - Output (Min/Fixed) | 1.25V |
| AC and DC characteristics | |
| PSRR | 80dB ~ 65dB (120Hz) |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C~125°C |
| Package | Bulk |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| Other | |
| Base Product Number | LM317 |
| Control Features | - |
| Mfr | Texas Instruments |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Product Status | Active |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Series | - |
Documents
No documents are linked to this part yet.
