Texas InstrumentsUnited States

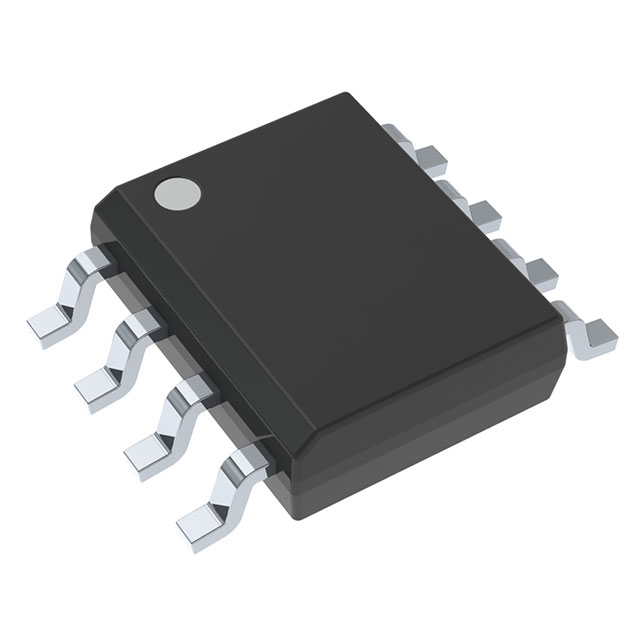

IC REG LIN POS ADJ 100MA 8SOIC
All alternatives
View full reportTechnical parameters
Key specs
Output voltage1.2 ~ 37 V
Output current100 mAMax
Input voltage≤ 40 V
Quiescent current5 mATyp
| Power | |
|---|---|
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 5 mA |
| Voltage Dropout (Max) | - |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Max) | 37V |
| Voltage - Output (Min/Fixed) | 1.2V |
| AC and DC characteristics | |
| PSRR | 80dB ~ 65dB (120Hz) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Base Product Number | LM317 |
| Control Features | - |
| Mfr | Texas Instruments |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Series | - |
