Texas InstrumentsUnited States

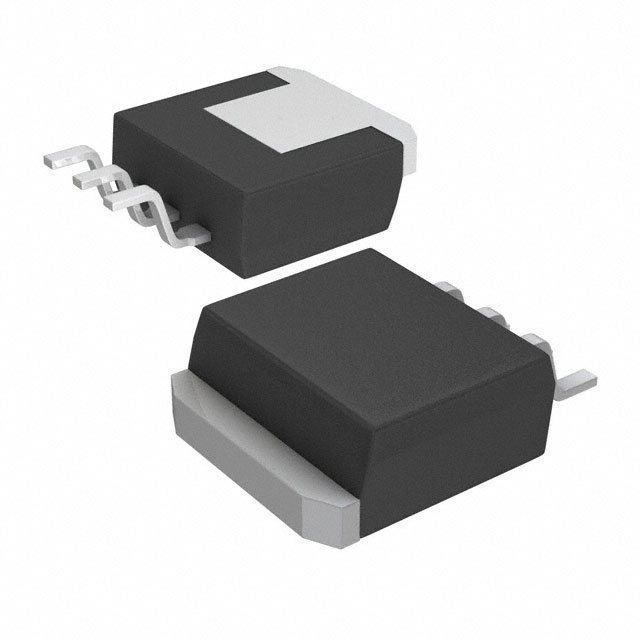

IC REG LIN POS ADJ 1.5A DDPAK
All alternatives
View full reportTechnical parameters
Key specs
Output voltage1.25 ~ 37 V
Output current1.5 AMax
Input voltage≤ 37 V
Quiescent current10 mATyp
| Power | |
|---|---|
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 10 mA |
| Voltage Dropout (Max) | - |
| Voltage - Input (Max) | 37V |
| Voltage - Output (Max) | 37V |
| Voltage - Output (Min/Fixed) | 1.25V |
| AC and DC characteristics | |
| PSRR | 64dB (120Hz) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA |
| Supplier Device Package | DDPAK/TO-263-3 |
| Other | |
| Base Product Number | LM317 |
| Control Features | - |
| Mfr | Texas Instruments |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Product Status | Active |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Series | - |
Documents
No documents are linked to this part yet.
