Texas InstrumentsUnited States

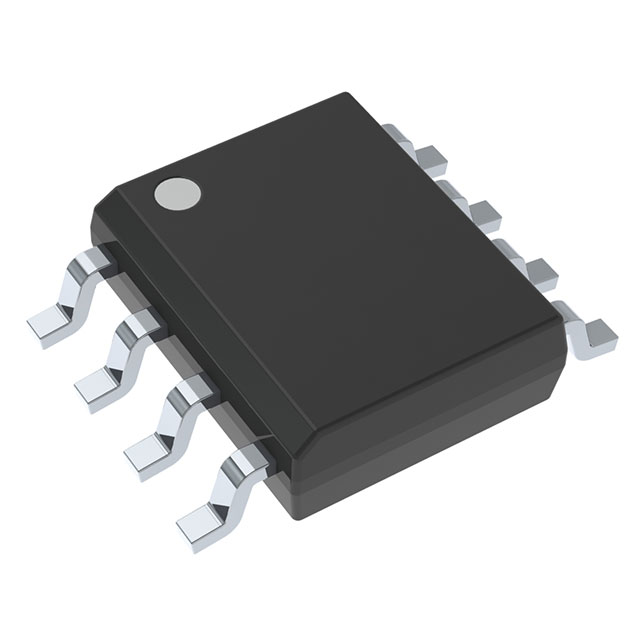

IC OPAMP GP 2 CIRCUIT 8SOIC
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage3 ~ 30 V
Gain bandwidth product700 kHzTyp
Input offset voltage3 mVTyp
Quiescent current500 µATyp
Channels2
| Power | |
|---|---|
| Current - Input Bias | 20 nA |
| Current - Output / Channel | 40 mA |
| Current - Supply | 500µA (x2 Channels) |
| Voltage - Supply Span (Max) | 30 V |
| Voltage - Supply Span (Min) | 3 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 700 kHz |
| Slew Rate | 0.3V/µs |
| Voltage - Input Offset | 3 mV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Amplifier Type | General Purpose |
| Base Product Number | LM358 |
| Mfr | Texas Instruments |
| Number of Circuits | 2 |
| Output Type | - |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Active |
| Series | - |
Documents
No documents are linked to this part yet.
