Rohm SemiconductorJapan

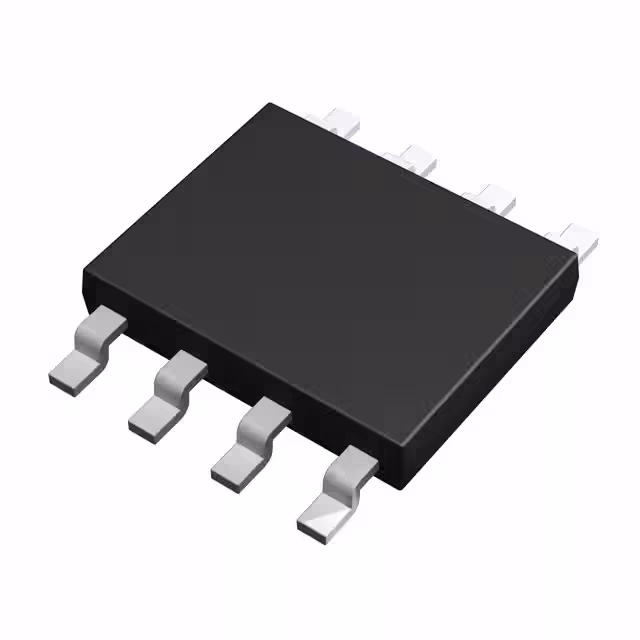

IC OPAMP GP 2 CIRCUIT 8SOIC
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage3 ~ 32 V
Gain bandwidth product700 kHzTyp
Input offset voltage1 mVTyp
Quiescent current600 µATyp
Channels2
| Power | |
|---|---|
| Current - Input Bias | 20 nA |
| Current - Output / Channel | 40 mA |
| Current - Supply | 600µA |
| Voltage - Supply Span (Max) | 32 V |
| Voltage - Supply Span (Min) | 3 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 700 kHz |
| Slew Rate | 0.3V/µs |
| Voltage - Input Offset | 1 mV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Amplifier Type | General Purpose |
| Base Product Number | LM358 |
| Mfr | Rohm Semiconductor |
| Number of Circuits | 2 |
| Output Type | - |
| Product Status | Not For New Designs |
| Series | - |
