Texas InstrumentsUnited States

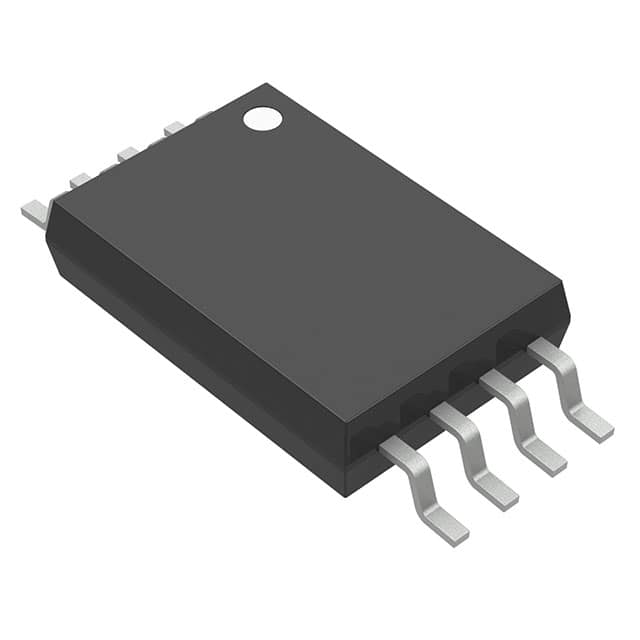

THERMOSTAT PROG ACT HI/LO 8TSSOP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 5mA |
| Current - Supply | 24µA |
| Voltage - Supply | 2.5 V ~ 5.5 V |
| AC and DC characteristics | |
| Accuracy | ±2.3°C |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -50°C~125°C |
| Package | Tube |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
| Switching Temperature | Programmable |
| Trip Temperature Threshold | Hot |
| Other | |
| Base Product Number | LM57 |
| Features | Selectable Trip Point, Trip Test |
| Mfr | Texas Instruments |
| Output | Active High, Active Low |
| Output Function | OverTemp, /OverTemp |
| Output Type | Open Drain, Push-Pull |
| Product Status | Active |
| Selectable Hysteresis | No |
| Series | Automotive, AEC-Q100 |
