Texas InstrumentsUnited States

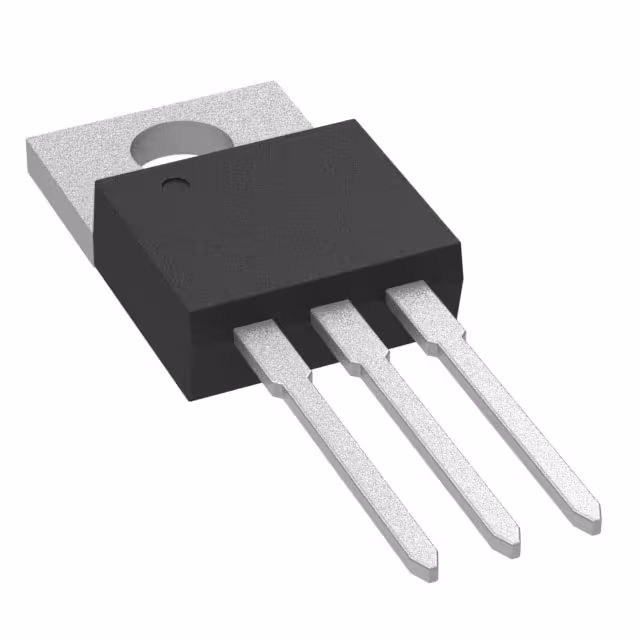

IC REG LINEAR 12V 1A TO220-3
All alternatives
View full reportTechnical parameters
Key specs
Output voltage12 V
Output current1 AMax
Input voltage≤ 35 V
Dropout voltage2 VMax · 1A
Quiescent current8 mATyp
| Power | |
|---|---|
| Current - Output | 1A |
| Current - Quiescent (Iq) | 8 mA |
| Voltage Dropout (Max) | 2V @ 1A |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 12V |
| AC and DC characteristics | |
| PSRR | 72dB (120Hz) |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C~125°C |
| Package | Tube |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| Other | |
| Base Product Number | LM7812 |
| Control Features | - |
| Mfr | Texas Instruments |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Product Status | Active |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Series | - |
