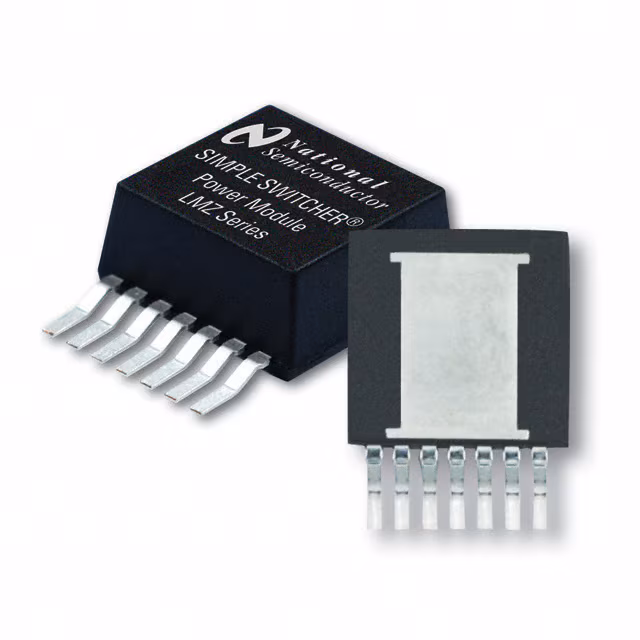

DC DC CONVERTER 0.8-5V
All alternatives
View full reportTechnical parameters
Key specs
Input voltage2.95 ~ 5.5 V
Output voltage800 mV ~ 5 V
Output current5 AMax
IsolationNon-isolated
| Power | |
|---|---|
| Current - Output (Max) | 5A |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 2.95V |
| Voltage - Output 1 | 0.8 ~ 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tube |
| Package / Case | TO-PMOD-7, Power Module |
| Size / Dimension | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) |
| Supplier Device Package | TO-PMOD-7 |
| Other | |
| Applications | ITE (Commercial) |
| Base Product Number | LMZ10505 |
| Control Features | Enable, Active High |
| Efficiency | 96% |
| Features | UVLO |
| Mfr | Texas Instruments |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | SIMPLE SWITCHER® |
| Type | Non-Isolated PoL Module |
