Power IntegrationsUnited States

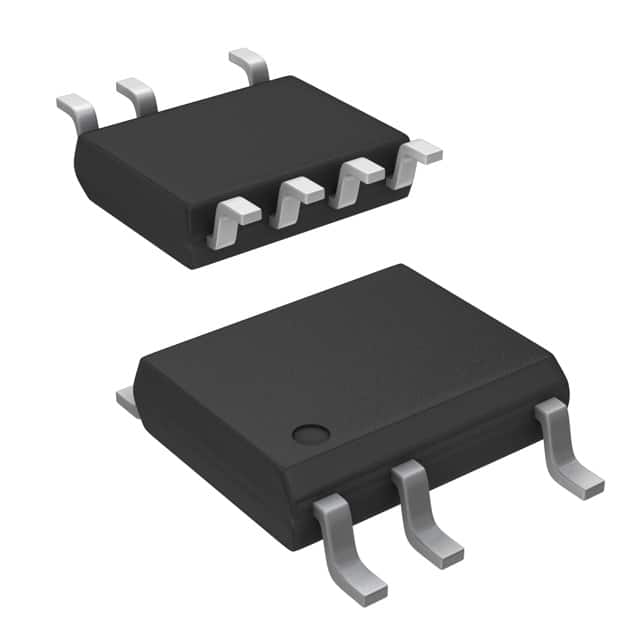

IC OFFLINE SWITCH MULT TOP 8SO
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power (Watts) | 3 W |
| Voltage - Breakdown | 725V |
| Voltage - Start Up | 18 V |
| Voltage - Supply (Vcc/Vdd) | - |
| AC and DC characteristics | |
| Frequency - Switching | 66kHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | SO-8C |
| Other | |
| Base Product Number | LNK3302 |
| Control Features | EN, Soft Start |
| Duty Cycle | 69% |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit |
| Internal Switch(s) | Yes |
| Mfr | Power Integrations |
| Output Isolation | Isolated |
| Product Status | Active |
| Series | LinkSwitch®-TNZ |
| Topology | Buck, Buck-Boost, Flyback |
