Texas InstrumentsUnited States
PROTOTYPE
All alternatives
View full reportTechnical parameters
Key specs
Output voltage1.235 ~ 30 V
Output current100 mAMax
Input voltage≤ 30 V
Dropout voltage600 mVMax · 100mA
Quiescent current140 µATyp
| Power | |
|---|---|
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 140 µA |
| Current - Supply (Max) | 14 mA |
| Voltage Dropout (Max) | 0.6V @ 100mA |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Max) | 30V |
| Voltage - Output (Min/Fixed) | 1.235V |
| AC and DC characteristics | |
| PSRR | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package | Bulk |

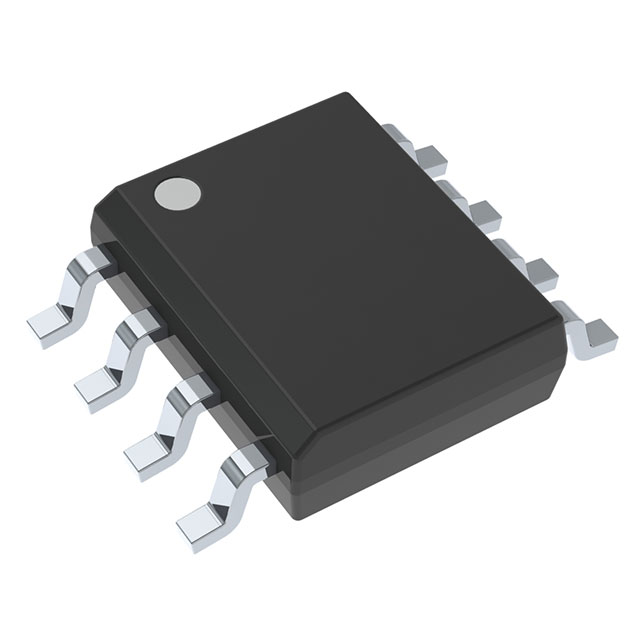

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Control Features | Enable, Error Flag |
| Mfr | Texas Instruments |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Product Status | Active |
| Protection Features | Over Current, Over Temperature |
| Series | - |
Documents
No documents are linked to this part yet.
