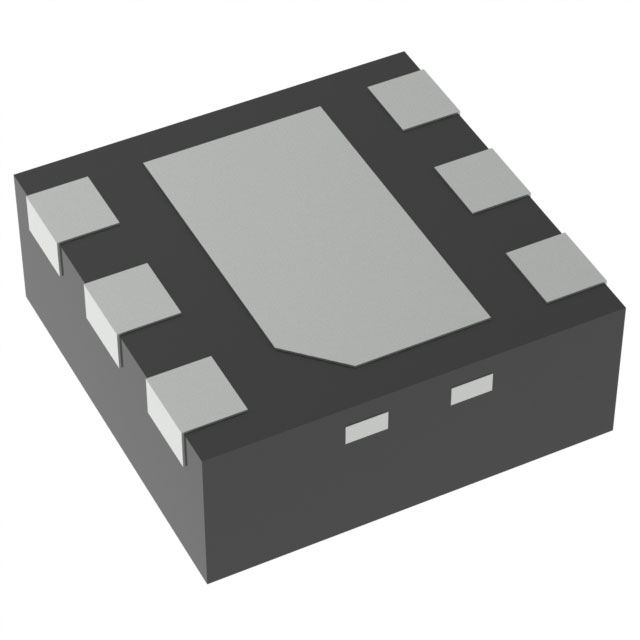

IC REG LINEAR 3.3V 500MA 6WSON
All alternatives
View full reportTechnical parameters
Key specs
Output voltage3.3 V
Output current500 mAMax
Input voltage≤ 6.5 V
Dropout voltage180 mVMax · 500mA
Quiescent current55 µATyp
| Power | |
|---|---|
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 55 µA |
| Current - Supply (Max) | 600 µA |
| Voltage Dropout (Max) | 0.18V @ 500mA |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| AC and DC characteristics | |
| PSRR | 80dB ~ 40dB (100Hz ~ 100kHz) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2x2) |
| Other | |
| Base Product Number | LP5912 |
| Control Features | Enable, Power Good, Soft Start |
| Mfr | Texas Instruments |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Active |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| Series | - |
