Texas InstrumentsUnited States

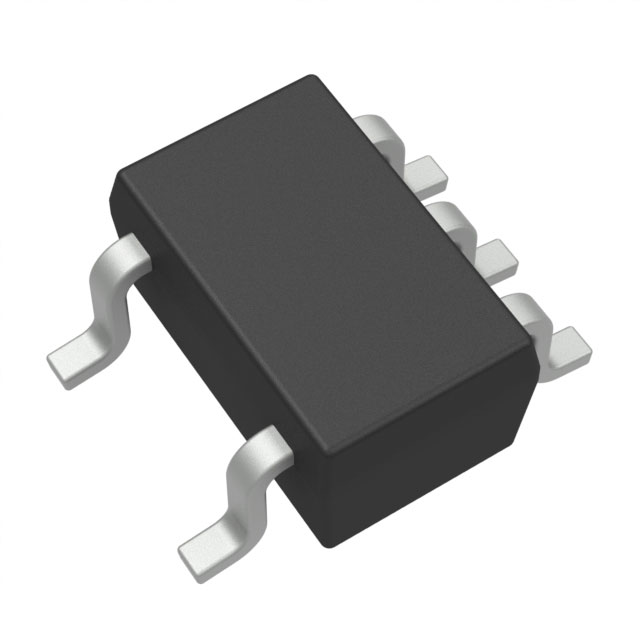

IC COMPARATOR 1 GEN PUR SC70-5
All alternatives
View full reportTechnical parameters
Key specs
Elements1
Output typePush-pull
Propagation delay30 µsMax
Supply voltage1.8 ~ 5.5 V
Quiescent current750 nAMax
| Power | |
|---|---|
| Current - Input Bias (Max) | 0.4pA @ 5V |
| Current - Output (Typ) | 19mA @ 5V |
| Current - Quiescent (Max) | 750nA |
| Voltage - Supply, Single/Dual (±) | 1.8V ~ 5.5V |
| AC and DC characteristics | |
| CMRR, PSRR (Typ) | 98dB CMRR, 82dB PSRR |
| Propagation Delay (Max) | 30µs |
| Voltage - Input Offset (Max) | 3mV @ 5V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Other | |
| Base Product Number | LPV7215 |
| Hysteresis | - |
| Mfr | Texas Instruments |
| Number of Elements | 1 |
| Output Type | CMOS, Push-Pull |
| Product Status | Active |
| Series | - |
| Type | General Purpose |
