Power IntegrationsUnited States
DIODE RECT GP 300V 10A TO263
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 10A |
| Current - Reverse Leakage @ Vr | 25 µA @ 300 V |
| Voltage - DC Reverse (Vr) (Max) | 300 V |
| Voltage - Forward (Vf) (Max) @ If | 1.9 V @ 10 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 150°C(Max) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

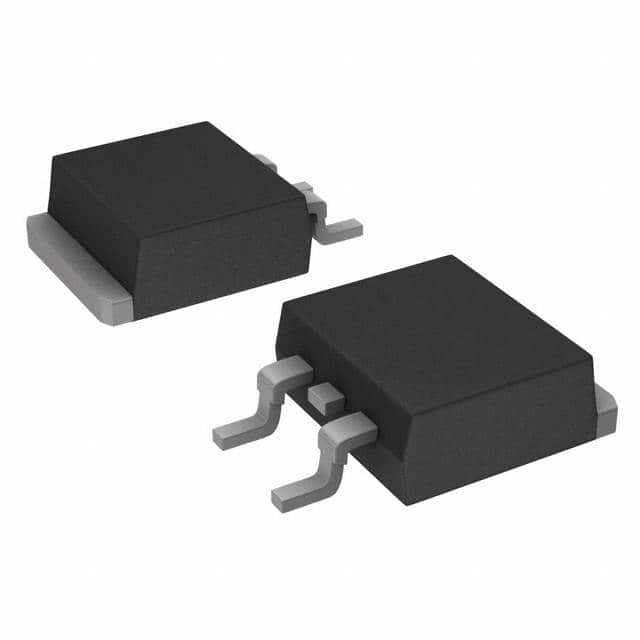

| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263AB |
| Other | |
| Base Product Number | LQA20 |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Standard |
| Mfr | Power Integrations |
| Product Status | Active |
| Reverse Recovery Time (trr) | 12.6 ns |
| Series | Qspeed™ |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
