Analog Devices Inc.United States

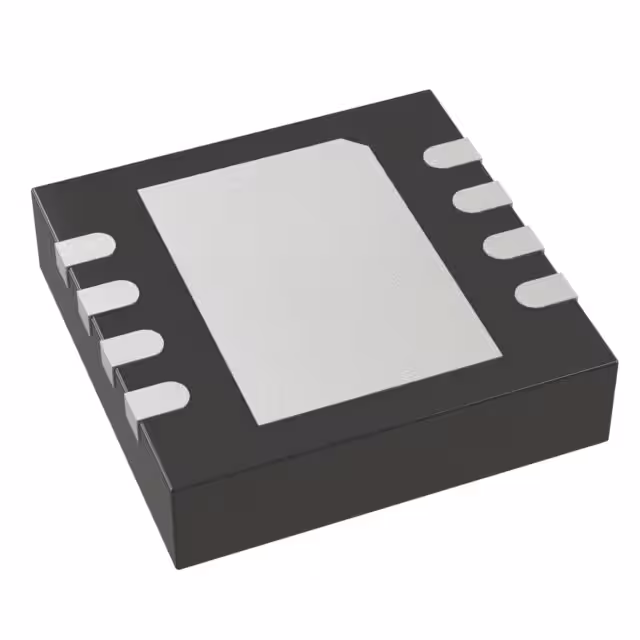

IC REG LIN NEG ADJ 200MA 8DFN
All alternatives
View full reportTechnical parameters
Key specs
Output voltage-1.22 ~ -20 V
Output current200 mAMax
Input voltage≤ -20 V
Dropout voltage490 mVMax · 200mA
| Power | |
|---|---|
| Current - Output | 200mA |
| Voltage Dropout (Max) | 0.49V @ 200mA |
| Voltage - Input (Max) | -20V |
| Voltage - Output (Max) | -20V |
| Voltage - Output (Min/Fixed) | -1.22V |
| AC and DC characteristics | |
| PSRR | 54dB (120Hz) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tube |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x3) |
| Other | |
| Base Product Number | LT1964 |
| Control Features | Enable |
| Mfr | Analog Devices Inc. |
| Number of Regulators | 1 |
| Output Configuration | Negative |
| Output Type | Adjustable |
| Product Status | Active |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Series | - |
