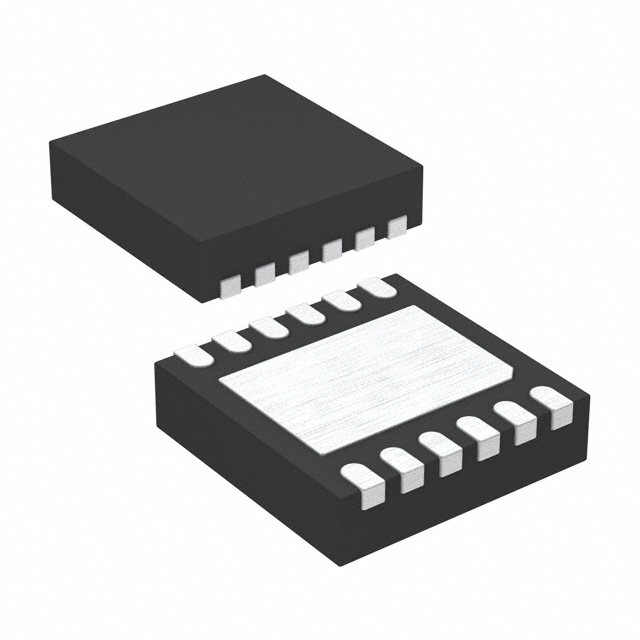

IC REG LIN POS PROG 500MA 12DFN
All alternatives
View full reportTechnical parameters
Key specs
Output voltage0 ~ 15 V
Output current500 mAMax
Input voltage≤ 20 V
Dropout voltage450 mVMax · 500mA
Quiescent current20 µATyp
| Power | |
|---|---|
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 20 µA |
| Current - Supply (Max) | 25 mA |
| Voltage Dropout (Max) | 0.45V @ 500mA |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Max) | 15V |
| Voltage - Output (Min/Fixed) | 0V |
| AC and DC characteristics | |
| PSRR | 117dB ~ 53dB (120Hz ~ 10MHz) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (3x3) |
| Other | |
| Base Product Number | LT3045 |
| Control Features | Enable, Power Good, Soft Start |
| Mfr | Analog Devices Inc. |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Product Status | Active |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Series | - |
