Analog Devices Inc.United States

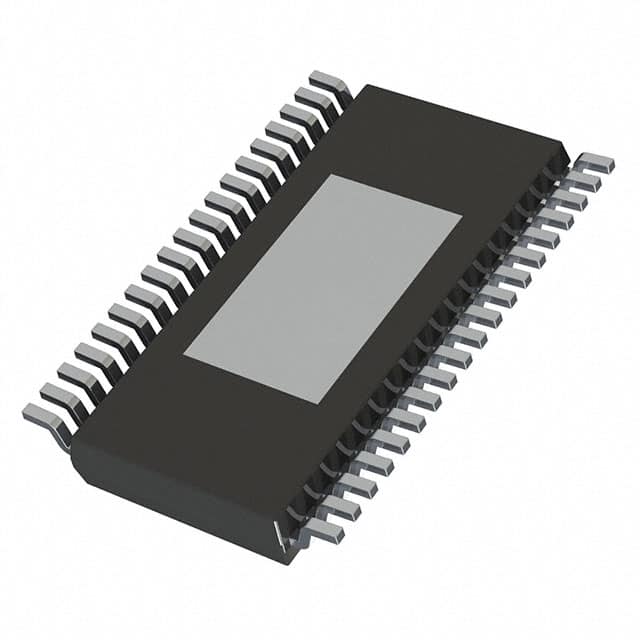

IC REG QUAD BUCK/LINEAR 38TSSOP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage/Current - Output 1 | -, 2.7A |
| Voltage/Current - Output 2 | -, 1.8A |
| Voltage/Current - Output 3 | -, 1.8A |
| Voltage - Supply | 4V ~ 36V |
| AC and DC characteristics | |
| Frequency - Switching | 900kHz ~ 1.1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tube |
| Package / Case | 38-TFSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 38-TSSOP-EP |
| Other | |
| Mfr | Analog Devices Inc. |
| Number of Outputs | 4 |
| Product Status | Obsolete |
| Series | - |
| Topology | Step-Down (Buck) (3), Linear (LDO) (1) |
| w/LED Driver | No |
| w/Sequencer | Yes |
| w/Supervisor | No |
