Analog Devices Inc.United States

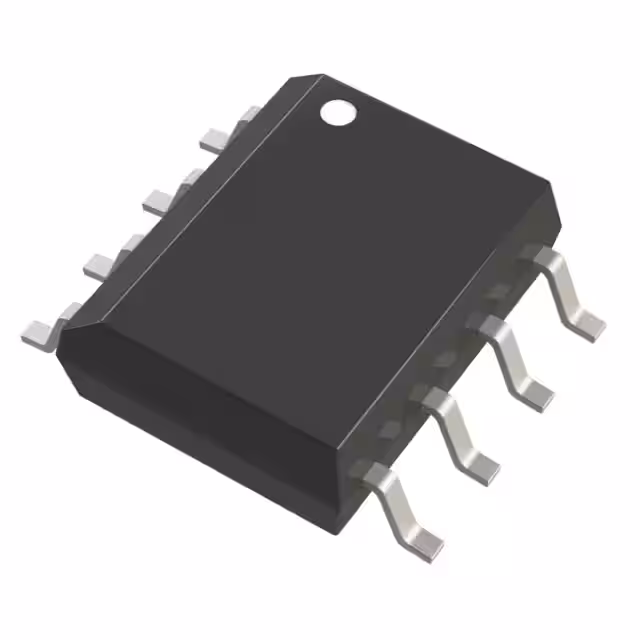

IC CMOS 2 CIRCUIT 8SO
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage2.8 ~ 11 V
Gain bandwidth product18 MHzTyp
Input offset voltage100 µVTyp
Quiescent current2.5 mATyp
Channels2
| Power | |
|---|---|
| Current - Input Bias | 0.5 pA |
| Current - Output / Channel | 30 mA |
| Current - Supply | 2.5mA (x2 Channels) |
| Voltage - Supply Span (Max) | 11 V |
| Voltage - Supply Span (Min) | 2.8 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 18 MHz |
| Slew Rate | 10V/µs |
| Voltage - Input Offset | 100 µV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tube |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Other | |
| Amplifier Type | CMOS |
| Base Product Number | LTC6241 |
| Mfr | Analog Devices Inc. |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Product Status | Active |
| Series | - |
