Analog Devices Inc.United States

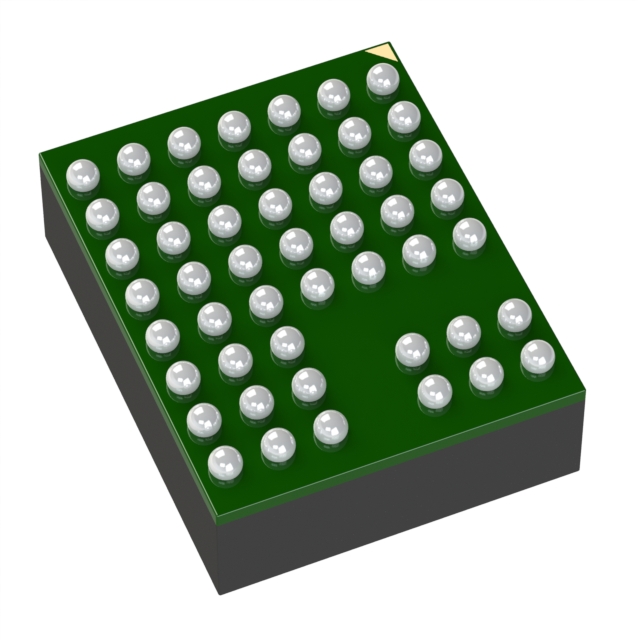

DC DC CONVERTER 0.8-10V 20W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage3.6 ~ 36 V
Output voltage800 mV ~ 10 V
Output current2 AMax
IsolationNon-isolated
| Power | |
|---|---|
| Current - Output (Max) | 2A |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 3.6V |
| Voltage - Output 1 | 0.8 ~ 10V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tray |
| Package / Case | 50-BBGA Module |
| Size / Dimension | 0.44" L x 0.35" W x 0.13" H (11.3mm x 9.0mm x 3.4mm) |
| Supplier Device Package | 50-BGA (11.25x9) |
| Other | |
| Applications | ITE (Commercial) |
| Base Product Number | LTM8023 |
| Efficiency | - |
| Features | - |
| Mfr | Analog Devices Inc. |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | µModule® |
| Type | Non-Isolated PoL Module |
Documents
No documents are linked to this part yet.
