Lite-On Inc.Taiwan, China

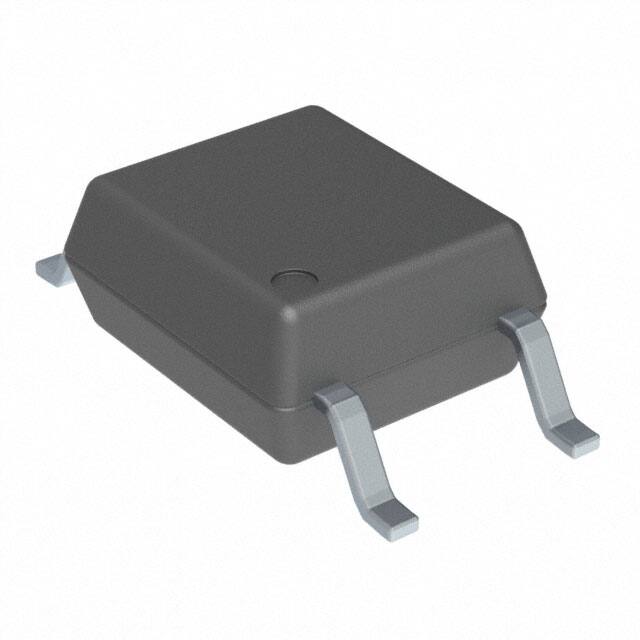

OPTOISOLATOR 3.75KV TRANS 4SOP
All alternatives
View full reportTechnical parameters
Key specs
Channels1
Isolation voltage3.75 kV
Output typeTransistor
Current transfer ratio130 %5mA
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Max) | 260% @ 5mA |
| Current Transfer Ratio (Min) | 130% @ 5mA |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Voltage - Isolation | 3750Vrms |
| Voltage - Output (Max) | 80V |
| AC and DC characteristics | |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~110°C |
| Package | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SOP |
| Other | |
| Base Product Number | LTV-356 |
| Input Type | DC |
| Mfr | Lite-On Inc. |
| Output Type | Transistor |
| Product Status | Active |
| Series | LTV-356T |
| Turn On / Turn Off Time (Typ) | - |
| Vce Saturation (Max) | 200mV |
