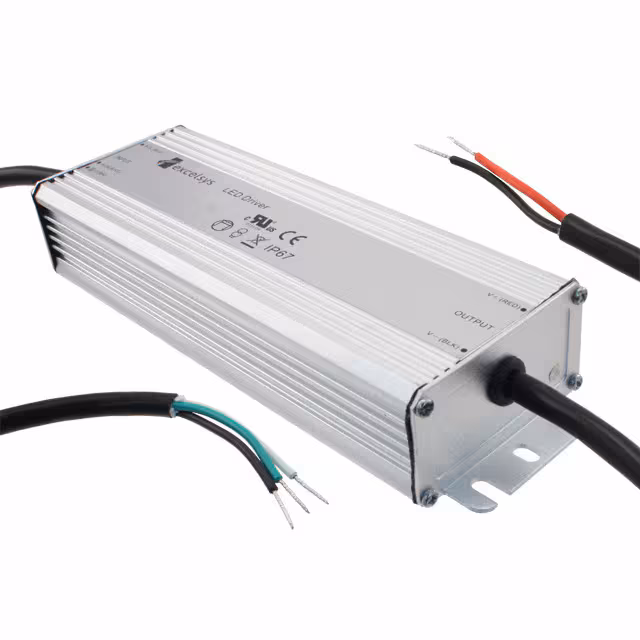

LED DRIVER CV AC/DC 36V 2.75A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 2.75A |
| Power (Watts) | 100 W |
| Voltage - Input (Max) | 305VAC |
| Voltage - Input (Min) | 90VAC |
| Voltage - Isolation | 3.75 kV |
| Voltage - Output | 36V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -35°C~70°C |
| Package | Box |
| Size / Dimension | 7.24" L x 2.66" W x 1.46" H (184.0mm x 67.5mm x 37.0mm) |
| Other | |
| Approval Agency | CE, cULus, EN |
| Base Product Number | LXV100 |
| Dimming | - |
| Efficiency | 93% |
| Features | OCP, OTP, OVP, SCP |
| Mfr | Advanced Energy |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Ratings | IP67 |
| Series | LXV100 (100W) |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Voltage |
| Weight | 2.1 lbs (952.5 g) |
