Microchip TechnologyUnited States

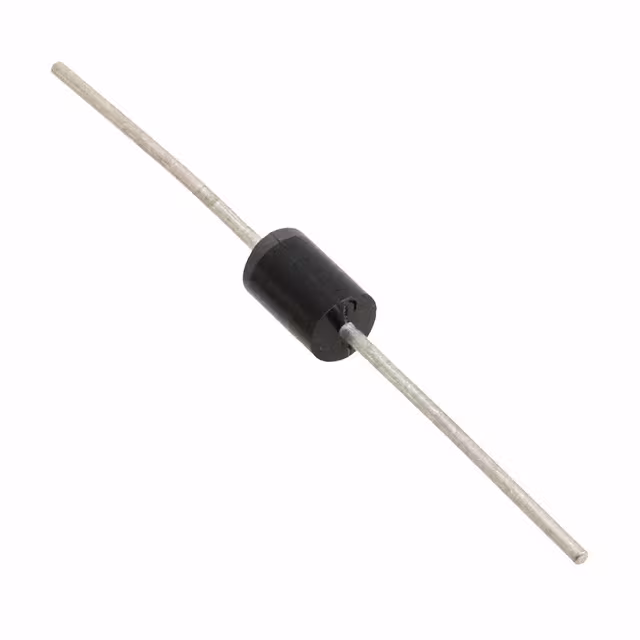

TVS DIODE 100VWM 162VC DO204AR
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage100 V
Breakdown voltage111 V
Clamping voltage162 VMax
Peak pulse power15 kW
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 93A |
| Power Line Protection | No |
| Power - Peak Pulse | 15000W (15kW) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 111V |
| Voltage - Clamping (Max) @ Ipp | 162V |
| Voltage - Reverse Standoff (Typ) | 100V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C~150°C(TJ) |
| Package | Bulk |
| Package / Case | DO-204AR, Axial |
| Supplier Device Package | DO-204AR |
| Other | |
| Applications | General Purpose |
| Base Product Number | 15KP100 |
| Mfr | Microchip Technology |
| Product Status | Active |
| Series | Military, MIL-PRF-19500 |
| Type | Zener |
