onsemiUnited States

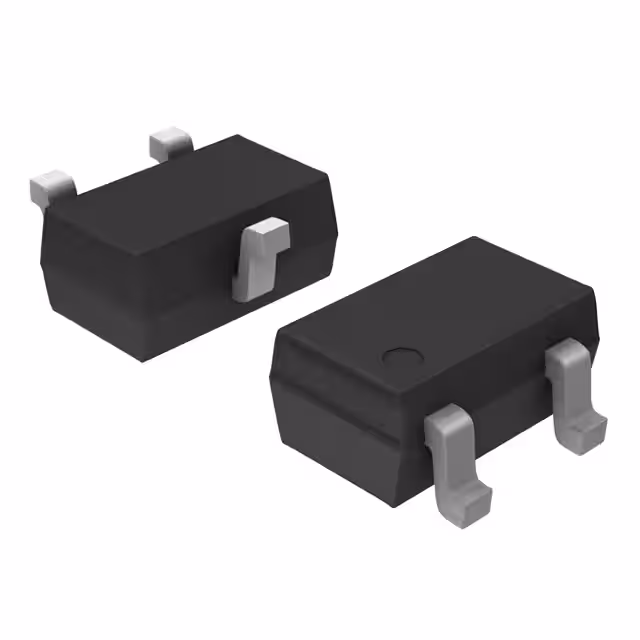

DIODE ARRAY GP 40V 100MA SC70-3
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 100mA (DC) |
| Current - Reverse Leakage @ Vr | 100 nA @ 35 V |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 150°C(Max) |
| Package | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 (SOT323) |
| Other | |
| Base Product Number | M1MA141 |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Standard |
| Mfr | onsemi |
| Product Status | Obsolete |
| Reverse Recovery Time (trr) | 3 ns |
| Series | - |
| Speed | Small Signal =< 200mA (Io), Any Speed |
