MA650.ST.AB.002.DZ
Taoglas LimitedIreland

MA650.ST.AB.002.DZ

ObsoleteRF Antennas

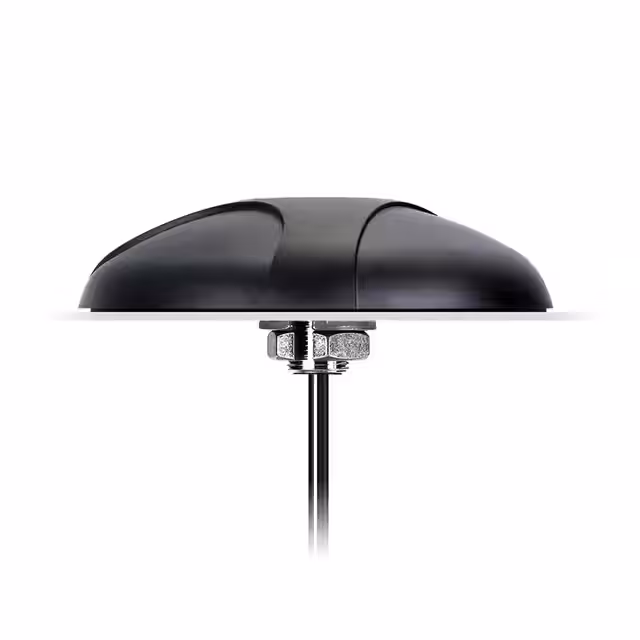

RF ANT 850MHZ/900MHZ DOME PNL MT

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Power - Max5 W
AC and DC characteristics
Frequency (Center/Band)850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency GroupWide Band
Frequency Range824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz
Gain0.65dBi, 0.16dBi, 3dBic, 4.05dBi, 3.64dBi
Environment and package
Height (Max)1.402" (35.60mm)
Mounting TypePanel Mount
PackageBox
Other
Antenna TypeDome
ApplicationsGLONASS, GPS
Base Product NumberMA650
FeaturesCable - 300mm, LNA
Ingress ProtectionIP67, IP69K
MfrTaoglas Limited
Number of Bands7
Product StatusObsolete
Return Loss-5dB, -10dB
RF Family/StandardNavigation
SeriesSpartan
TerminationSMB, Fakra (2)
VSWR1.5
