IC REG BUCK SYNC 4.5V-24V 2A QFN-20
MAC1602 is a 24V/2A synchronous buck module in QFN-20 package, integrating inductor, capacitors, and MOSFETs with OCP and TSD protection.Checked against the datasheet
All alternatives
View full reportTechnical parameters
Datasheet-verified parameters
20 items| Parameter | Value and test conditions | Source |
|---|---|---|
| Input Voltage Range | 4.5V 至 24V | |
| Continuous Output Current | 2A | |
| High-Side RDS(ON) | Typ 90 mΩ (V_BST-SW=5V) | |
| Low-Side RDS(ON) | Typ 40 mΩ (V_CC=5V) | |
| Integrated Inductance | Typ 1 μH | |
| Inductor DCR | Min 25 mΩ, Typ 45 mΩ, Max 65 mΩ (T_J=25°C) |
All parameters (9)
| Power | |
|---|---|
| 供电电压 (VIN) | 4.5 V 至 24 V |
| 输出电压 (VOUT) | 0.8 V 至 VIN * DMAX |
| 连续负载电流 | 2A |
| AC and DC characteristics | |
| 振荡器频率 (fSW) | 2000 kHz (Typ) |
| Environment and package | |

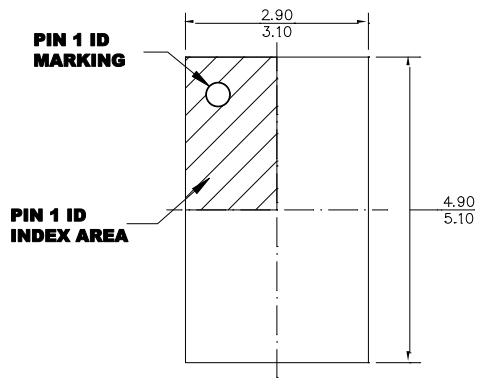

| 封装 | QFN-20 (3mm x 5mm x 1.6mm) |
| Other | |
| 上管导通内阻 (HSRDS-ON) | 90 mΩ (Typ) |
| 下管导通内阻 (LSRDS-ON) | 40 mΩ (Typ) |
| 工作结温 (TJ) | -55°C 至 +125°C |
| 集成电感值 (L) | 1 μH (Typ) |
Pinout and package

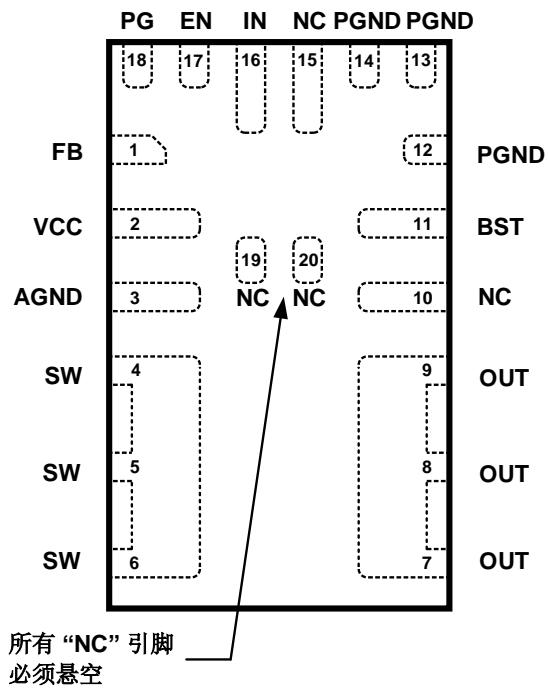

顶部视角
| Pin | Name | Function | Source |
|---|---|---|---|
| 1 | FB: Feedback pin, used to set output voltage | ||
| 2 | VCC: Internal 4.9 V LDO output pin | ||
| 3 | AGND: Analog ground, reference ground for logic circuits | ||
| 11 | BST: Bootstrap pin, internal bootstrap capacitor integrated | ||
| 16 | IN: Supply voltage input pin, range +4.5 V to +24 V | ||
| 17 | EN: Enable pin, high to enable, floating or ground to disable | ||
| 18 | PG: Power Good output indicator pin, open-drain output | ||
| 10,15,19,20 | NC: No connect, must be left floating | ||
| 12,13,14 | PGND: Power ground, power reference ground | ||
| 4,5,6 | SW: Switch output pins | ||
| 7,8,9 | OUT: Power output pins, connect load here |
