WeEn SemiconductorsNetherlands

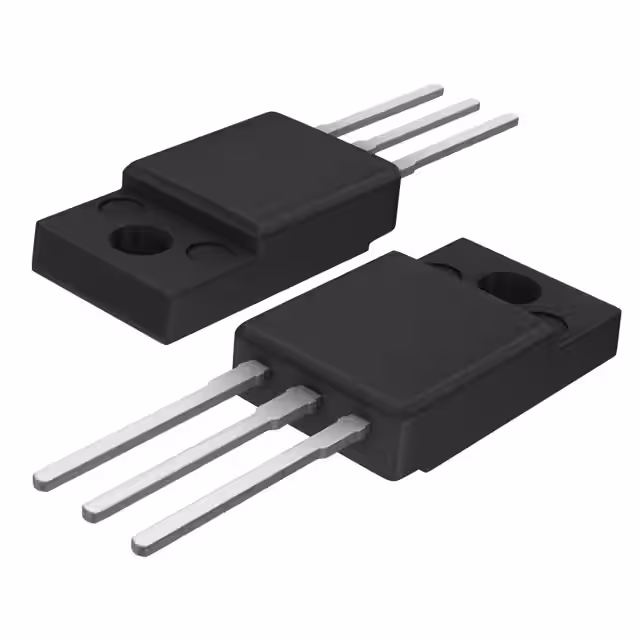

TRIAC 600V 20A TO220-3
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Hold (Ih) (Max) | 30 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 190A, 230A |
| Current - On State (It (RMS)) (Max) | 20 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - Off State | 600 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~125°C(TJ) |
| Package | Tube |
| Package / Case | TO-220-3 Full Pack, Isolated Tab |
| Supplier Device Package | TO-220F |
| Other | |
| Base Product Number | MAC223 |
| Configuration | Single |
| Mfr | WeEn Semiconductors |
| Product Status | Active |
| Series | - |
| Triac Type | Standard |
