onsemiUnited States

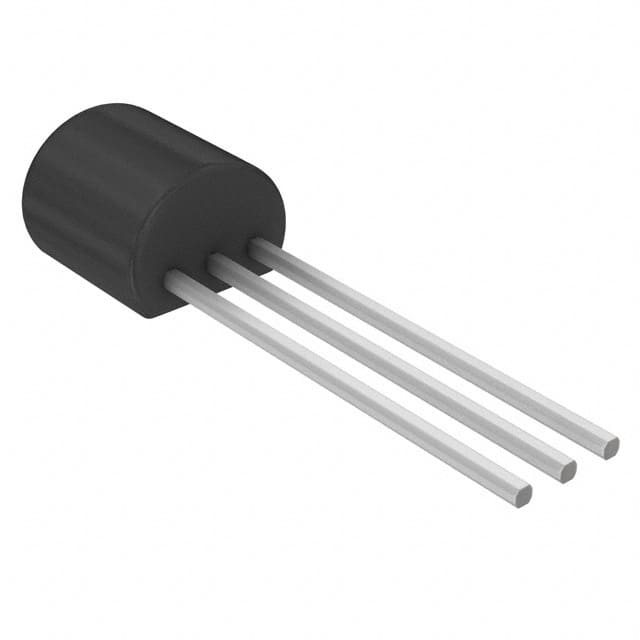

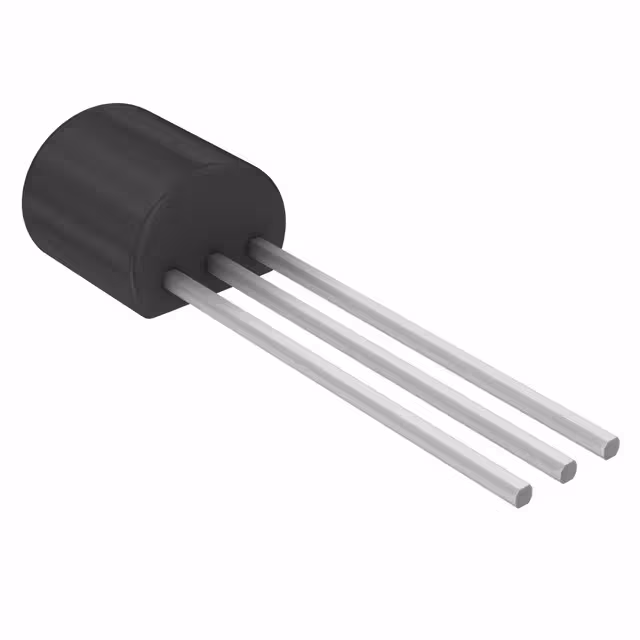

THYRISTOR TRIAC .6A 400V TO92
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Gate Trigger (Igt) (Max) | 5 mA |
| Current - Hold (Ih) (Max) | 10 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 8A @ 60Hz |
| Current - On State (It (RMS)) (Max) | 600 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Voltage - Off State | 400 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Package | Bulk |
| Package / Case | TO-226-3, TO-92-3 Long Body |
| Supplier Device Package | TO-92 (TO-226) |
| Other | |
| Base Product Number | MAC97 |
| Configuration | Single |
| Mfr | onsemi |
| Product Status | Obsolete |
| Series | - |
| Triac Type | Logic - Sensitive Gate |
Documents
No documents are linked to this part yet.
