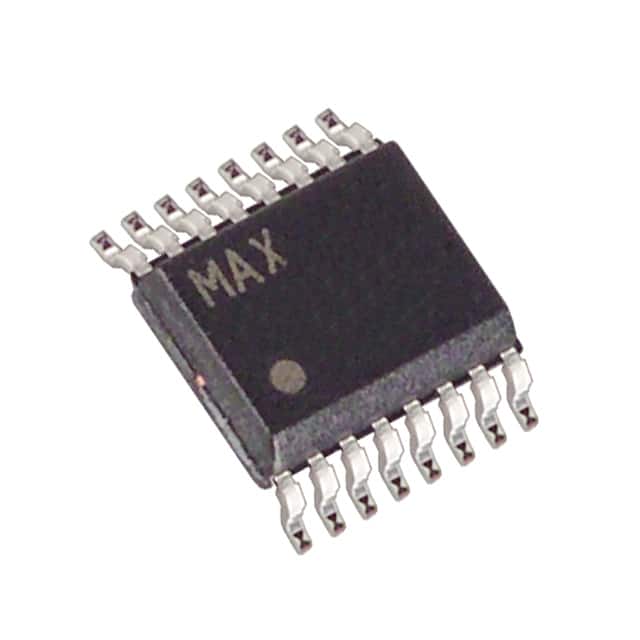

IC REG CTRLR FLYBACK 16QSOP
All alternatives
View full reportTechnical parameters
Key specs
TopologyFlyback
Outputs1
Input voltage3 ~ 16.5 V
Switching frequency100 ~ 500 kHz
| Power | |
|---|---|
| Voltage - Supply (Vcc/Vdd) | 3V ~ 16.5V |
| AC and DC characteristics | |
| Frequency - Switching | 100kHz ~ 500kHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tube |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
| Other | |
| Base Product Number | MAX1847 |
| Clock Sync | Yes |
| Control Features | Enable, Frequency Control |
| Duty Cycle (Max) | 96% |
| Function | Step-Up/Step-Down |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of Outputs | 1 |
| Output Configuration | Negative |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Product Status | Active |
| Serial Interfaces | - |
| Series | - |
| Synchronous Rectifier | No |
| Topology | Flyback |
