Technical parameters

Key specs

ProtocolRS-232
Drivers/Receivers1
Data rate250 kbpsMax
Supply voltage3 ~ 5.5 V

Datasheet-verified parameters

23 items
ParameterValue and test conditionsSource
ProtocolRS-232 (TIA/EIA-232-F, ITU v.28)
Drivers / Receivers1 Driver, 1 Receiver
Data RateUp to 250kbit/s
Supply Voltage3V to 5.5V
PackageTSSOP (PW, 16)
Operating Temperature-40°C to 85°C
GradeIndustrial (I)
RoHSYes
Recommended Operating ConditionsVCC: 3V to 5.5V; TA: -40°C to 85°C
Absolute Maximum RatingsVCC: -0.3V to 6V; Tstg: -65°C to 150°C
ESD Protection±15kV HBM, ±8kV IEC 61000-4-2 Contact, ±15kV IEC 61000-4-2 Air-gap
Quiescent Current1µA typical (Powered off / Auto-power down enabled)
Supply Current0.3mA typical (Auto-power down disabled, VCC=3.3V or 5V, TA=25°C)
Driver High-Level Output VoltageMin 5V, Typ 5.4V (RL=3kΩ to GND, DIN=GND)
Driver Low-Level Output VoltageMax -5V, Typ -5.4V (RL=3kΩ to GND, DIN=VCC)
Driver Short-Circuit Output CurrentTyp ±35mA, Max ±60mA (VCC=3.6V or 5.5V, VO=0V)
Receiver High-Level Output VoltageMin VCC-0.6V, Typ VCC-0.1V (IOH=-1mA)
Receiver Low-Level Output VoltageMax 0.4V (IOL=1.6mA)
Receiver Positive-Going Input Threshold VoltageTyp 1.6V (VCC=3.3V), Typ 1.9V (VCC=5V); Max 2.4V
Receiver Negative-Going Input Threshold VoltageTyp 1.1V (VCC=3.3V), Typ 1.4V (VCC=5V); Min 0.6V/0.8V
Receiver Input ResistanceMin 3kΩ, Typ 5kΩ, Max 7kΩ (VI=±3V to ±25V)
Auto-Power-Down FeatureYes
Pin Count16
All parameters (16)ExpandCollapse
Power
Voltage - Supply3V ~ 5.5V
Environment and package
Mounting TypeSurface Mount
Operating Temperature-40°C~85°C
PackageTape & Reel (TR); Cut Tape (CT); Digi-Reel®
Package / Case16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package16-TSSOP
Other
Base Product NumberMAX3221
Data Rate250kbps
DuplexFull
MfrTexas Instruments
Number of Drivers/Receivers1/1
Product StatusActive
ProtocolRS232
Receiver Hysteresis500 mV
Series-
TypeTransceiver

Pinout and package

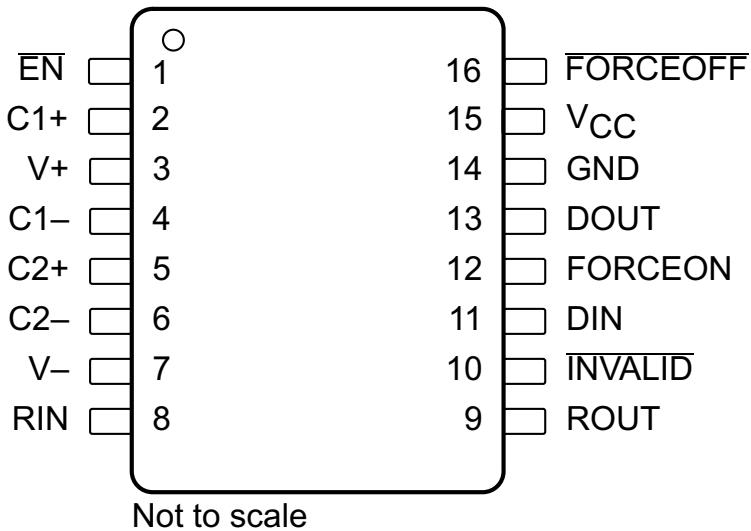

Figure 4-1. DB, PW or DYY Pack…
Figure 4-1. DB, PW or DYY Pack…
Package: TSSOP (PW, 16)
PinNameFunctionSource
1EN(Active Low): Low input enables receiver ROUT output. High input sets ROUT to high impedance.
2C1+: Positive terminals of the voltage-doubler charge pump capacitors
3V+: 5.5V supply generated by the charge pump
4C1-: Negative terminals of the voltage-doubler charge pump capacitors
5C2+: Positive terminals of the voltage-doubler charge pump capacitors
6C2-: Negative terminals of the voltage-doubler charge pump capacitors
7V-: -5.5V supply generated by the charge pump
8RIN: RS-232 receiver input
9ROUT: Receiver output
10INVALID: Invalid output pin. Output low when RIN input is unpowered.
11DIN: Driver input
12FORCEON: Automatic power-down control input
13DOUT: RS-232 driver output
14GND: Ground
15VCC: 3V to 5.5V supply voltage
16FORCEOFF: Automatic power-down control input
