Analog Devices Inc./Maxim IntegratedUnited States

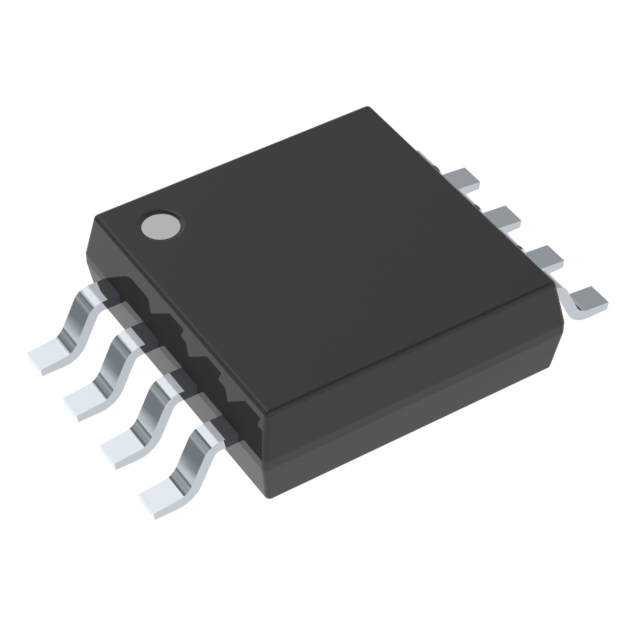

IC BUFFER 2 CIRCUIT 8UMAX
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage8 ~ 11 V
Input offset voltage1 mVTyp
Quiescent current2.2 mATyp
Channels2
| Power | |
|---|---|
| Current - Input Bias | 800 nA |
| Current - Output / Channel | 52 mA |
| Current - Supply | 2.2mA (x2 Channels) |
| Voltage - Supply Span (Max) | 11 V |
| Voltage - Supply Span (Min) | 8 V |
| AC and DC characteristics | |
| -3db Bandwidth | 720 MHz |
| Slew Rate | 4200V/µs |
| Voltage - Input Offset | 1 mV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tube |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-uMAX/uSOP |
| Other | |
| Amplifier Type | Buffer |
| Base Product Number | MAX4204 |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of Circuits | 2 |
| Output Type | - |
| Product Status | Obsolete |
| Series | - |
