Analog Devices Inc./Maxim IntegratedUnited States

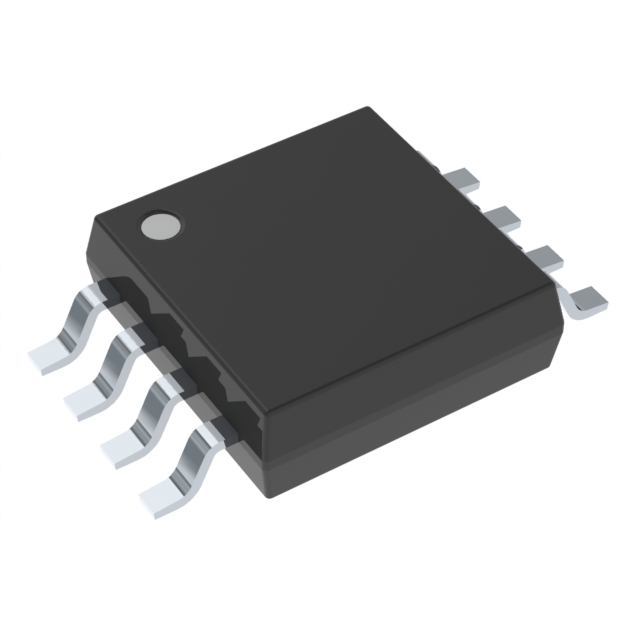

IC VOLTAGE FEEDBACK 1 CIRC 8UMAX
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage4.5 ~ 8 V
Gain bandwidth product1.5 GHzTyp
Input offset voltage1 mVTyp
Quiescent current28 mATyp
Channels1
| Power | |
|---|---|
| Current - Input Bias | 3.5 µA |
| Current - Output / Channel | 45 mA |
| Current - Supply | 28mA |
| Voltage - Supply Span (Max) | 8 V |
| Voltage - Supply Span (Min) | 4.5 V |
| AC and DC characteristics | |
| -3db Bandwidth | 300 MHz |
| Gain Bandwidth Product | 1.5 GHz |
| Slew Rate | 900V/µs |
| Voltage - Input Offset | 1 mV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-uMAX/uSOP |
| Other | |
| Amplifier Type | Voltage Feedback |
| Base Product Number | MAX4267 |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of Circuits | 1 |
| Output Type | - |
| Product Status | Obsolete |
| Series | - |
