Analog Devices Inc./Maxim IntegratedUnited States

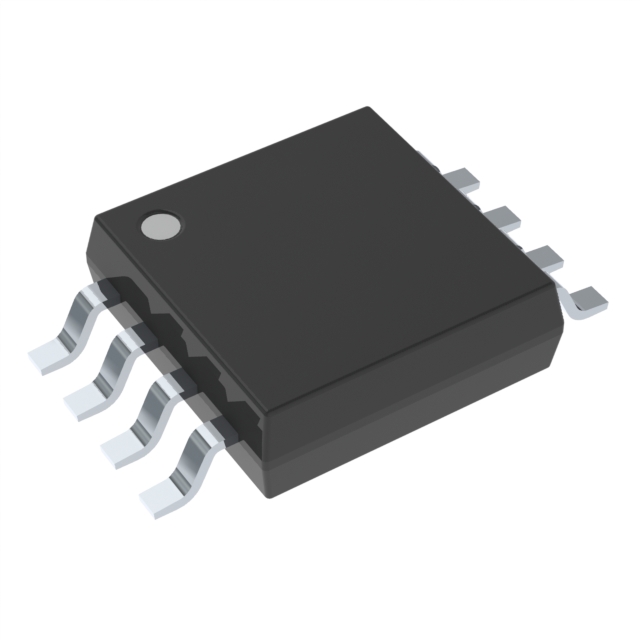

THERMOSTAT ACT LOW OPEN DR 8UMAX
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 20mA |
| Current - Supply | 200µA |
| Voltage - Supply | 3 V ~ 5.5 V |
| AC and DC characteristics | |
| Accuracy | ±1.5°C |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Package | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-uMAX/uSOP |
| Switching Temperature | 75°C ~ 115°C, 120°C |
| Trip Temperature Threshold | Hot |
| Other | |
| Base Product Number | MAX6686 |
| Features | Selectable Trip Point |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Output | Active Low |
| Output Function | OverTemp, /OverTemp |
| Output Type | Open Drain |
| Product Status | Active |
| Selectable Hysteresis | No |
| Series | - |
