Analog Devices Inc./Maxim IntegratedUnited States
IC
All alternatives
View full reportTechnical parameters
Key specs
Output voltage3.1 V
Output current120 mAMax
Input voltage≤ 6 V
Dropout voltage120 mVMax · 120mA
Quiescent current500 µATyp
| Power | |
|---|---|
| Current - Output | 120mA |
| Current - Quiescent (Iq) | 500 µA |
| Voltage Dropout (Max) | 0.12V @ 120mA |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.1V |
| AC and DC characteristics | |
| PSRR | 72dB ~ 46dB (1kHz ~ 100kHz) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Bulk |

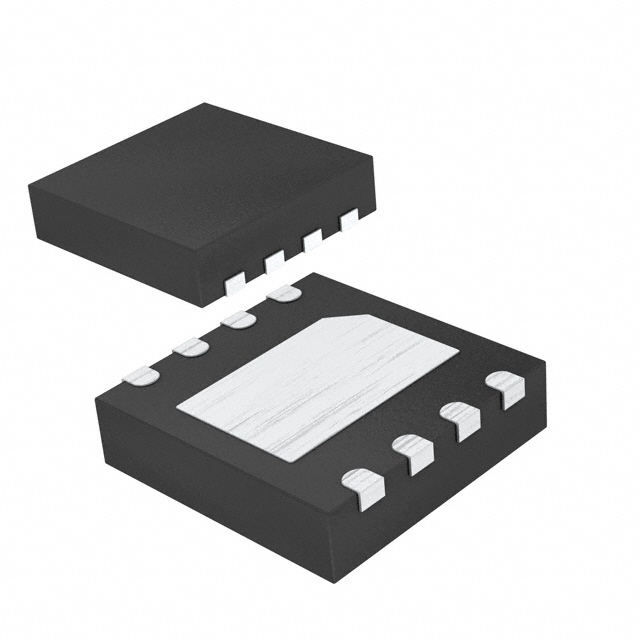

| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN-EP (2x2) |
| Other | |
| Control Features | Enable |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Product Status | Obsolete |
| Protection Features | Over Current, Over Temperature |
| Series | - |
Documents
No documents are linked to this part yet.
