Analog Devices Inc./Maxim IntegratedUnited States

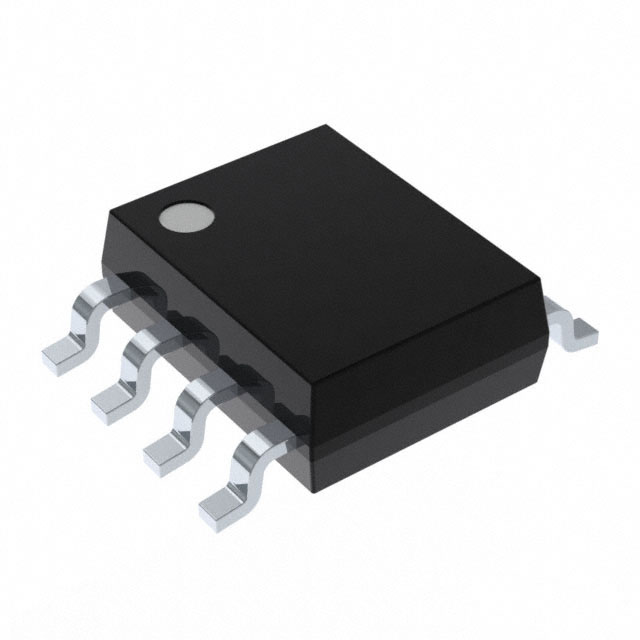

IC REG CHG PUMP ADJ/-1.28V 8SOIC
All alternatives
View full reportTechnical parameters
Key specs
Input voltage4.5 ~ 10 V
Output voltage-1.28 ~ -9 V
Output current5 mAMax
Switching frequency100 kHz
| Power | |
|---|---|
| Current - Output | 5mA |
| Voltage - Input (Max) | 10V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Max) | -9V |
| Voltage - Output (Min/Fixed) | -1.28V (-4.1V) |
| AC and DC characteristics | |
| Frequency - Switching | 100kHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Package | Tube |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Base Product Number | MAX851 |
| Function | Step-Down |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of Outputs | 1 |
| Output Configuration | Negative |
| Output Type | Adjustable (Fixed) |
| Product Status | Obsolete |
| Series | - |
| Synchronous Rectifier | No |
| Topology | Charge Pump |
