Analog Devices Inc./Maxim IntegratedUnited States

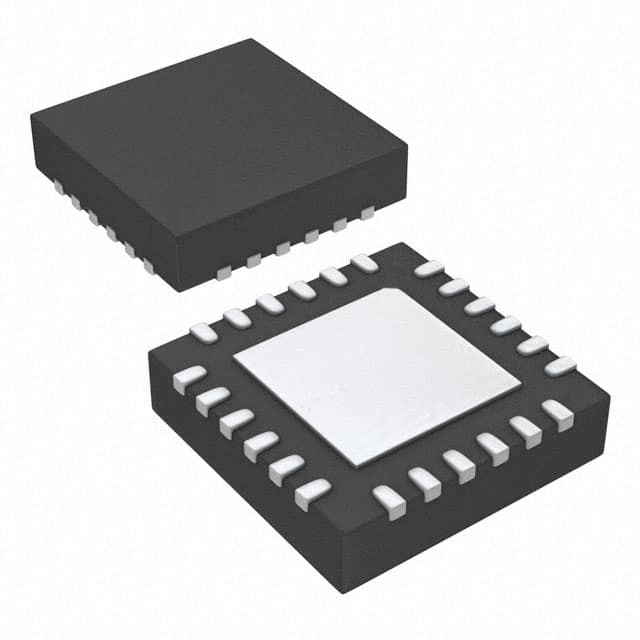

IC REG BUCK ADJUSTABLE 6A 24TQFN
All alternatives
View full reportTechnical parameters
Key specs
Input voltage2.35 ~ 3.6 V
Output voltage600 mV ~ 3.24 V
Output current6 AMax
Switching frequency500 kHz ~ 2 MHz
| Power | |
|---|---|
| Current - Output | 6A |
| Voltage - Input (Max) | 3.6V |
| Voltage - Input (Min) | 2.35V |
| Voltage - Output (Max) | 3.24V |
| Voltage - Output (Min/Fixed) | 0.6V |
| AC and DC characteristics | |
| Frequency - Switching | 500kHz ~ 2MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tube |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-TQFN (4x4) |
| Other | |
| Base Product Number | MAX8646 |
| Function | Step-Down |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Product Status | Active |
| Series | - |
| Synchronous Rectifier | Yes |
| Topology | Buck |
