Analog Devices Inc./Maxim IntegratedUnited States

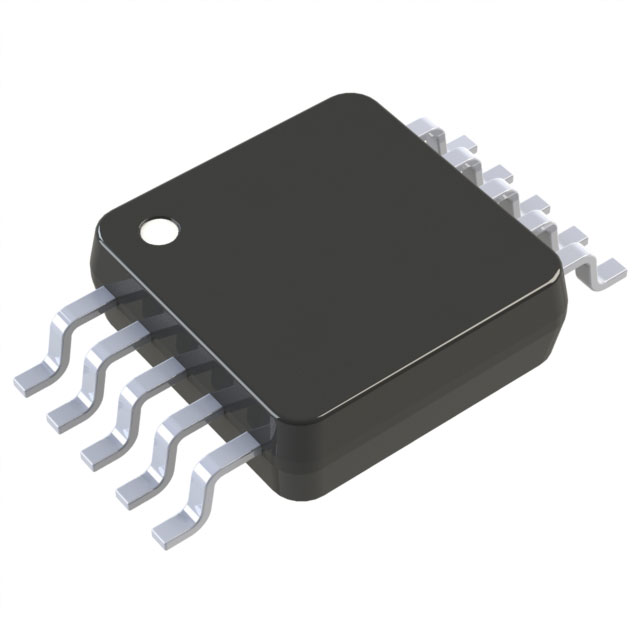

IC REG CHRG PUMP INV 30MA 10UMAX
All alternatives
View full reportTechnical parameters
Key specs
Input voltage1.8 ~ 5.5 V
Output current30 mAMax
Switching frequency270 ~ 630 kHz
| Power | |
|---|---|
| Current - Output | 30mA |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 1.8V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin |
| AC and DC characteristics | |
| Frequency - Switching | 270kHz ~ 630kHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package | Tube |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-uMAX/uSOP |
| Other | |
| Base Product Number | MAX868 |
| Function | Ratiometric |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of Outputs | 1 |
| Output Configuration | Positive or Negative |
| Output Type | Fixed |
| Product Status | Active |
| Series | - |
| Synchronous Rectifier | No |
| Topology | Charge Pump |
