Analog Devices Inc./Maxim IntegratedUnited States

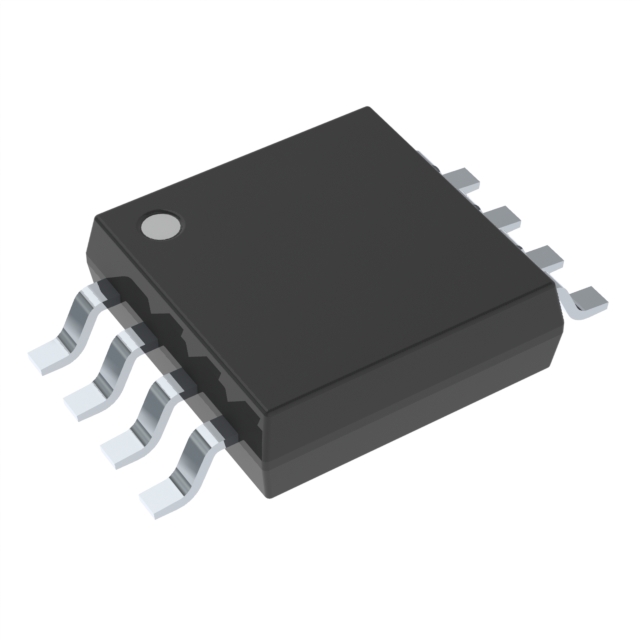

IC REG BST SEPIC ADJ 1.8A 8UMAX
All alternatives
View full reportTechnical parameters
Key specs
Input voltage2.6 ~ 5.5 V
Output voltage2.6 ~ 12 V
Output current1.8 AMax
Switching frequency640 kHz ~ 1.22 MHz
| Power | |
|---|---|
| Current - Output | 1.8A (Switch) |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 2.6V |
| Voltage - Output (Max) | 12V |
| Voltage - Output (Min/Fixed) | 2.6V |
| AC and DC characteristics | |
| Frequency - Switching | 640kHz, 1.22MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-uMAX/uSOP |
| Other | |
| Base Product Number | MAX8715 |
| Function | Step-Up, Step-Up/Step-Down |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Product Status | Active |
| Series | - |
| Synchronous Rectifier | No |
| Topology | Boost, SEPIC |
