Vishay General Semiconductor - Diodes DivisionUnited States
DIODE ARRAY SCHOTTKY 45V D2PAK
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 7.5A |
| Current - Reverse Leakage @ Vr | 100 µA @ 45 V |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 840 mV @ 7.5 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -65°C~150°C |
| Package | Tube |

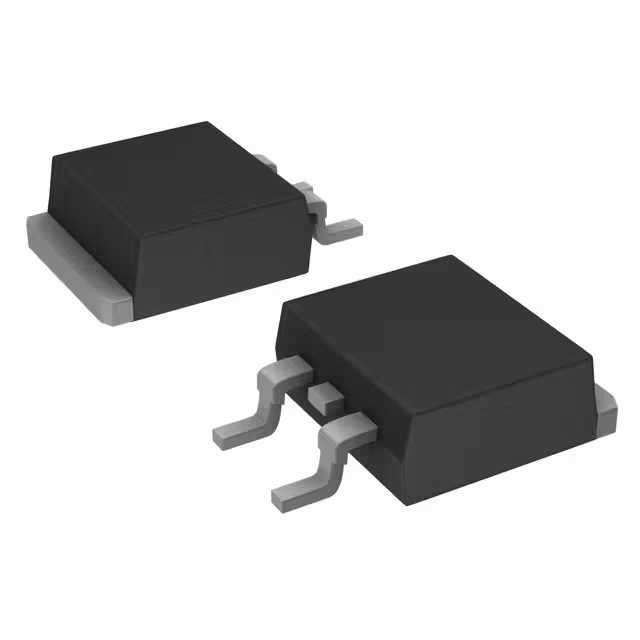

| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263AB (D²PAK) |
| Other | |
| Base Product Number | MBRB15 |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Schottky |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Product Status | Obsolete |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
