onsemiUnited States

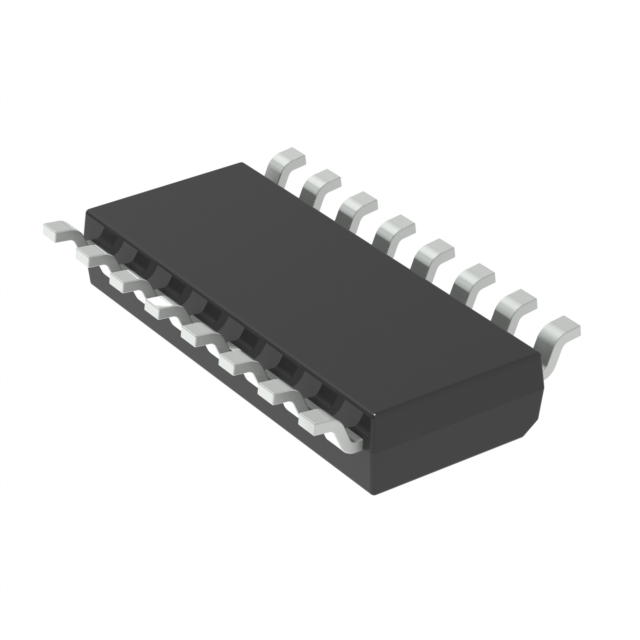

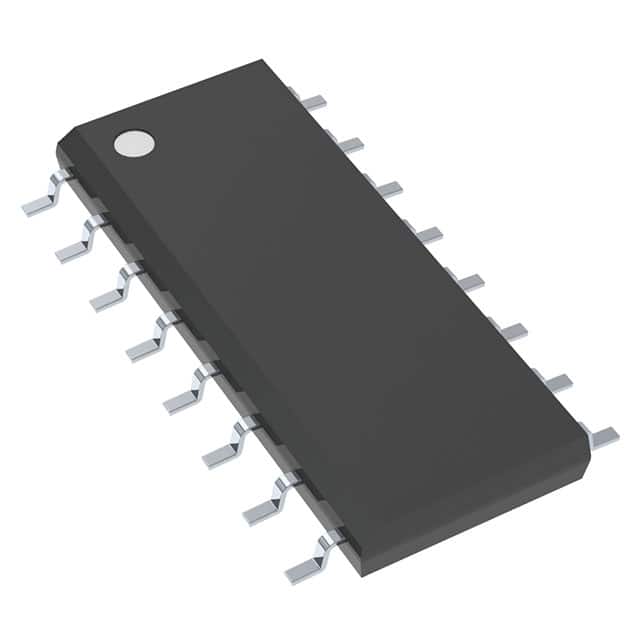

IC COMP MAGNITUDE 4BIT 16-SOIC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output High, Low | 4.2mA, 4.2mA |
| Current - Quiescent (Iq) | 20 µA |
| Voltage - Supply | 3V ~ 18V |
| AC and DC characteristics | |
| Max Propagation Delay @ V, Max CL | 260ns @ 15V, 50pF |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Other | |
| Base Product Number | MC14585 |
| Mfr | onsemi |
| Number of Bits | 4 |
| Output | Active High |
| Output Function | A<B, A=B, A>B |
| Product Status | Active |
| Series | 4000B |
| Type | Magnitude Comparator |
Documents
No documents are linked to this part yet.
