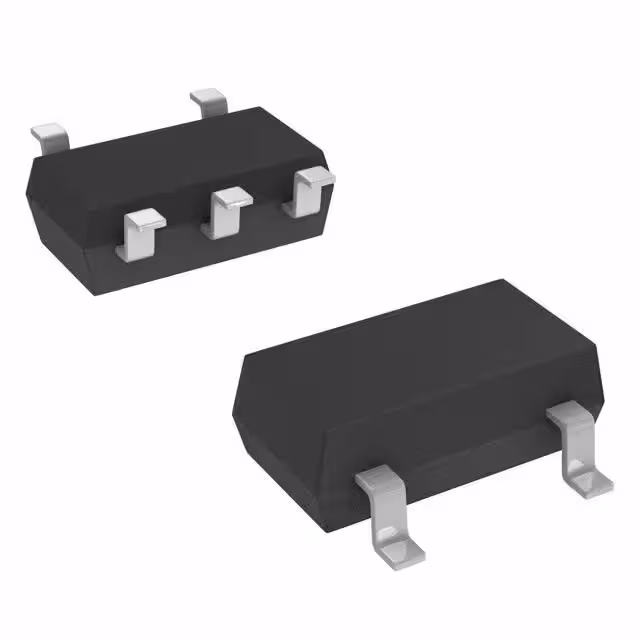

IC GATE AND 1CH 2-INP SC-70
All alternatives
View full reportTechnical parameters
Key specs
Logic typeAND
Elements1
Inputs2
Supply voltage2 ~ 5.5 V
Propagation delay7.9 nsMax · 5V
| Power | |
|---|---|
| Current - Output High, Low | 8mA, 8mA |
| Current - Quiescent (Max) | 1 µA |
| Voltage - Supply | 2V ~ 5.5V |
| AC and DC characteristics | |
| Max Propagation Delay @ V, Max CL | 7.9ns @ 5V, 50pF |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~125°C |
| Package | Bulk |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-88A (SC-70-5/SOT-353) |
| Other | |
| Base Product Number | 74VHC1G08 |
| Features | - |
| Input Logic Level - High | 1.5V ~ 3.85V |
| Input Logic Level - Low | 0.5V ~ 1.65V |
| Logic Type | AND Gate |
| Mfr | onsemi |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Product Status | Active |
| Series | 74VHC |
