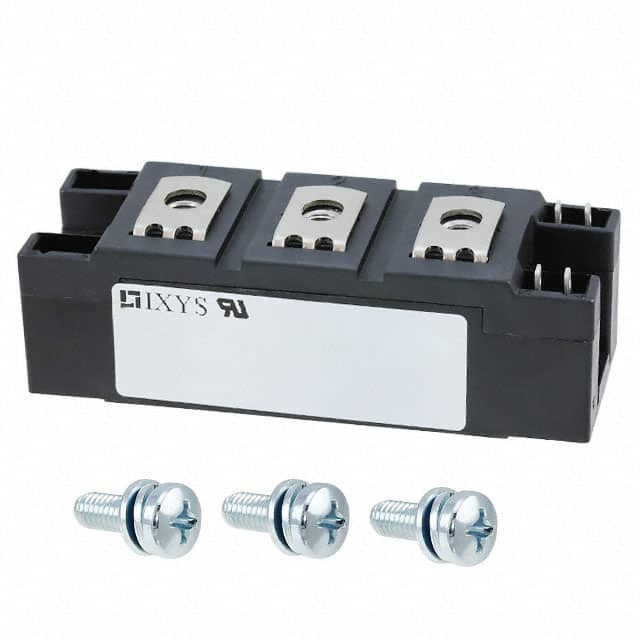

BIPOLAR MODULE - THYRISTOR Y4-M
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 5400A, 5830A |
| Current - On State (It (AV)) (Max) | 180 A |
| Current - On State (It (RMS)) (Max) | 280 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Voltage - Off State | 2.2 kV |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C~140°C(TJ) |
| Package | Box |
| Package / Case | Y4-M6 |
| Other | |
| Base Product Number | MCNA180 |
| Mfr | IXYS |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Product Status | Active |
| Series | - |
| Structure | Series Connection - SCR/Diode |
