Microchip TechnologyUnited States

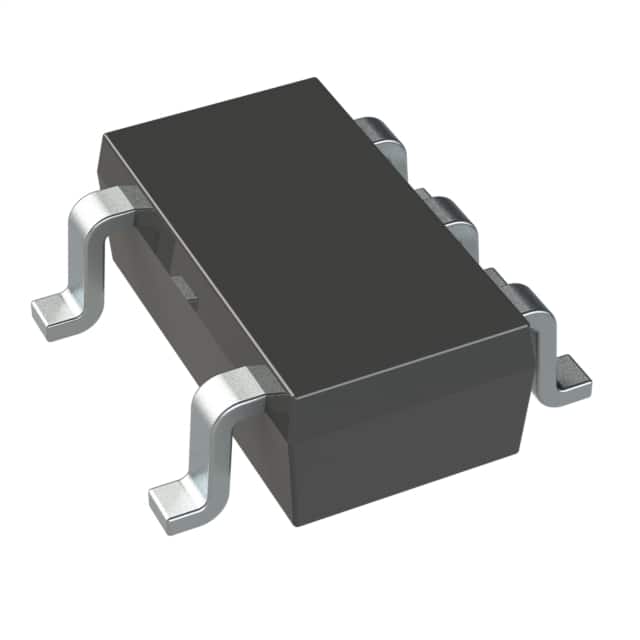

IC OPAMP ZER-DRIFT 1CIRC SOT23-5
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage2 ~ 5.5 V
Gain bandwidth product2 MHzTyp
Input offset voltage8 µVTyp
Quiescent current170 µATyp
Channels1
| Power | |
|---|---|
| Current - Input Bias | 1 pA |
| Current - Output / Channel | 26 mA |
| Current - Supply | 170µA |
| Voltage - Supply Span (Max) | 5.5 V |
| Voltage - Supply Span (Min) | 2 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 2 MHz |
| Slew Rate | 1V/µs |
| Voltage - Input Offset | 8 µV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TA) |
| Package | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Other | |
| Amplifier Type | Zero-Drift |
| Base Product Number | MCP6V71 |
| Mfr | Microchip Technology |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Product Status | Active |
| Series | Automotive, AEC-Q100 |
