Microchip TechnologyUnited States

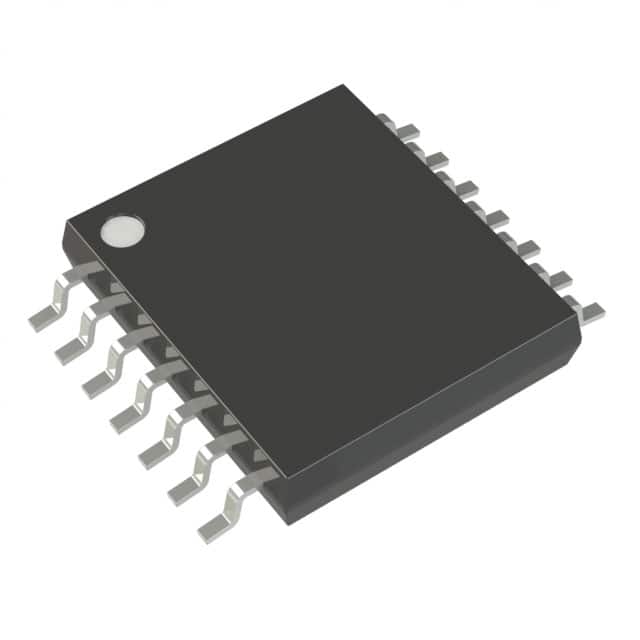

IC OPAMP ZER-DRIFT 4CIRC 14TSSOP
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage2.4 ~ 5.5 V
Gain bandwidth product10 MHzTyp
Input offset voltage9 µVTyp
Quiescent current1.1 mATyp
Channels4
| Power | |
|---|---|
| Current - Input Bias | 2 pA |
| Current - Output / Channel | 40 mA |
| Current - Supply | 1.1mA (x4 Channels) |
| Voltage - Supply Span (Max) | 5.5 V |
| Voltage - Supply Span (Min) | 2.4 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 10 MHz |
| Slew Rate | 9.5V/µs |
| Voltage - Input Offset | 9 µV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TA) |
| Package | Tape & Reel (TR) |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Other | |
| Amplifier Type | Zero-Drift |
| Base Product Number | MCP6V94 |
| Mfr | Microchip Technology |
| Number of Circuits | 4 |
| Output Type | Rail-to-Rail |
| Product Status | Active |
| Series | Zero-Drift |
