CUI DevicesUnited States

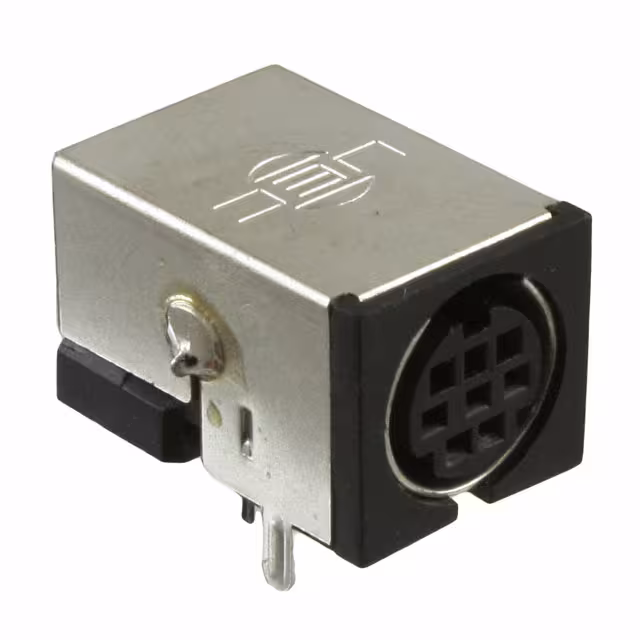

CONN RCPT FMALE MINI DIN 8P SLDR
All alternatives
View full reportTechnical parameters
Key specs
Positions8
GenderFemale
Current rating2 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 1A, 2A |
| Voltage Rating | 100VAC, 12VDC |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -25°C~85°C |
| Package | Bulk |
| Shell Size - Insert | Mini DIN |
| Shell Size, MIL | - |
| Other | |
| Applications | - |
| Backshell Material, Plating | - |
| Cable Opening | - |
| Color | Black, Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | - |
| Contact Material | Phosphor Bronze |
| Fastening Type | Push-Pull |
| Features | Ground |
| Ingress Protection | - |
| Insert Material | - |
| Material Flammability Rating | - |
| Mfr | CUI Devices |
| Number of Positions | 8 |
| Orientation | Keyed |
| Primary Material | Plastic |
| Product Status | Obsolete |
| Series | MD-SMW |
| Shell Finish | - |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Shielding | Shielded |
| Termination | Solder |
