IXYSUnited States

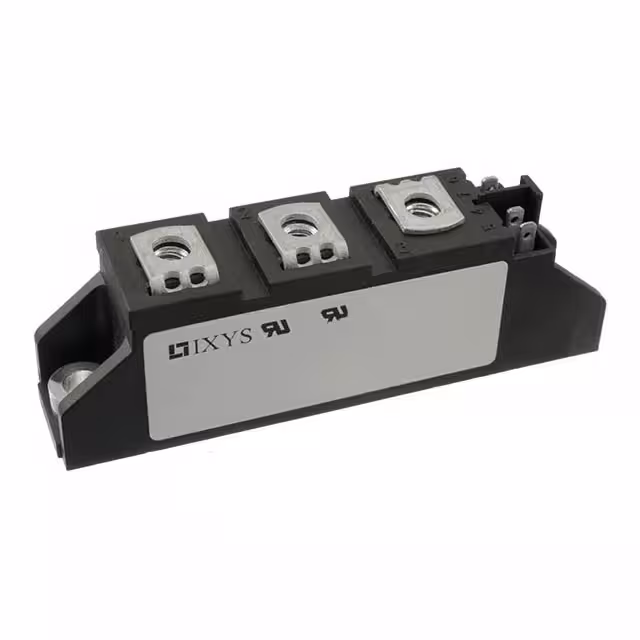

DIODE MODULE 2.2KV 120A TO240AA
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 120A |
| Current - Reverse Leakage @ Vr | 200 µA @ 2200 V |
| Voltage - DC Reverse (Vr) (Max) | 2200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 150 A |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature - Junction | -40°C~150°C |
| Package | Bulk |
| Package / Case | TO-240AA |
| Supplier Device Package | TO-240AA |
| Other | |
| Base Product Number | MDA95 |
| Diode Configuration | 1 Pair Common Anode |
| Diode Type | Standard |
| Mfr | IXYS |
| Product Status | Active |
| Series | - |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
