Bourns Inc.United States
PTC RESET FUSE 30V 100MA 1210
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Max | 10 A |
| Current - Trip (It) | 300 mA |
| Voltage - Max | 30V |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 1210 (3225 Metric), Concave |

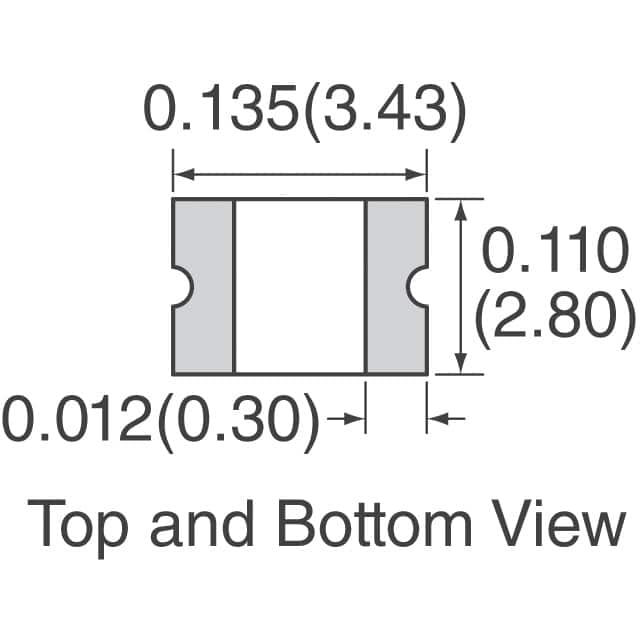

| Size / Dimension | 0.127" L x 0.102" W (3.22mm x 2.58mm) |
| Other | |
| Approval Agency | cURus, TUV |
| Base Product Number | MF-USMF |
| Lead Spacing | - |
| Mfr | Bourns Inc. |
| Product Status | Active |
| Ratings | AEC-Q200 |
| Resistance - Initial (Ri) (Min) | 800 mOhms |
| Resistance - Post Trip (R1) (Max) | 15 Ohms |
| Series | Multifuse®, MF-USMF |
| Thickness (Max) | 0.033" (0.85mm) |
| Time to Trip | 600 ms |
| Type | Polymeric |
