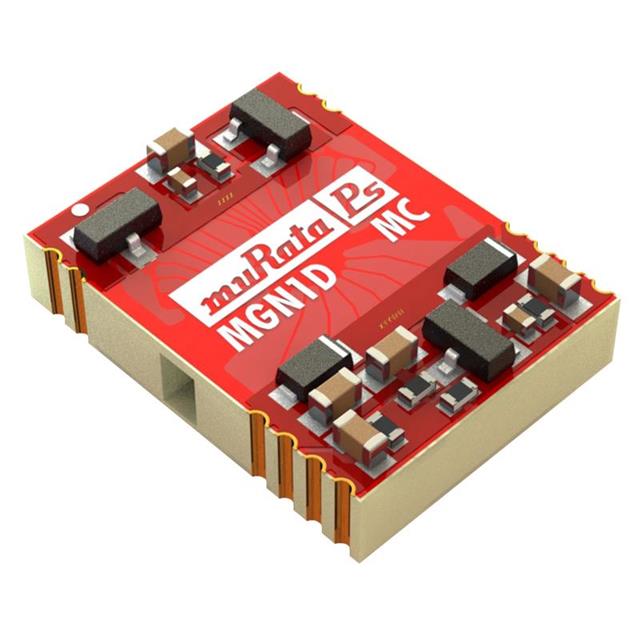

MGN1D050603MC-R13
DC DC ConvertersDC-DC 1W SM 5-6/-3V GAN
All alternatives
View full reportTechnical parameters
Key specs
Input voltage4.5 ~ 5.5 V
Output voltage6 V
Output current111 mAMax
Power999 mWMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 111mA, 111mA |
| Power (Watts) | 999 mW |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 6V |
| Voltage - Output 2 | -3V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Package / Case | 24-SMD Module, 12 Leads |
| Size / Dimension | 0.63" L x 0.47" W x 0.17" H (16.0mm x 12.0mm x 4.3mm) |
| Supplier Device Package | - |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | - |
| Control Features | - |
| Efficiency | 62% |
| Features | - |
| Mfr | Murata Power Solutions Inc. |
| Number of Outputs | 2 |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Active |
| Series | MGN1 (1W) |
| Standard Number | - |
| Type | Isolated Module |
