Microchip TechnologyUnited States
IC PWR SWITCH P-CHAN 1:1 4TMLF
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 2A |
| Voltage - Load | 1.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

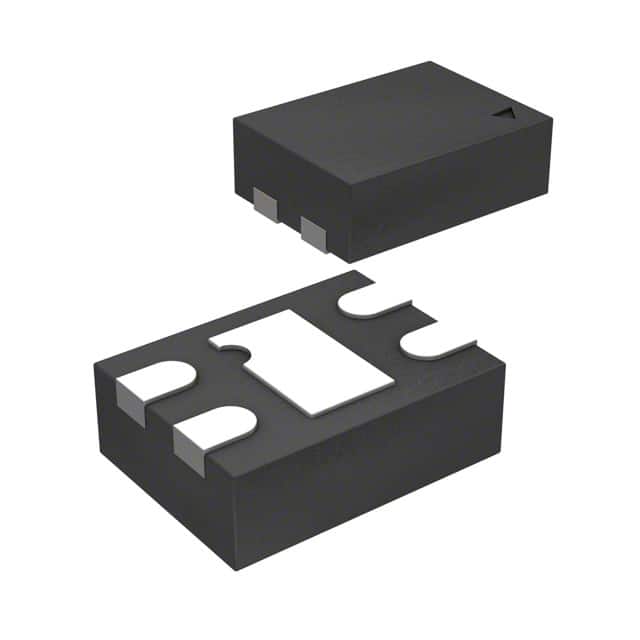

| Package / Case | 4-UFDFN Exposed Pad, 4-TMLF® |
| Supplier Device Package | 4-TMLF® (1.2x1.6) |
| Other | |
| Base Product Number | MIC94064 |
| Fault Protection | - |
| Features | Slew Rate Controlled |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mfr | Microchip Technology |
| Number of Outputs | 1 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Product Status | Active |
| Ratio - Input:Output | 1:1 |
| Rds On (Typ) | 85mOhm |
| Series | - |
| Switch Type | General Purpose |
