Microchip TechnologyUnited States

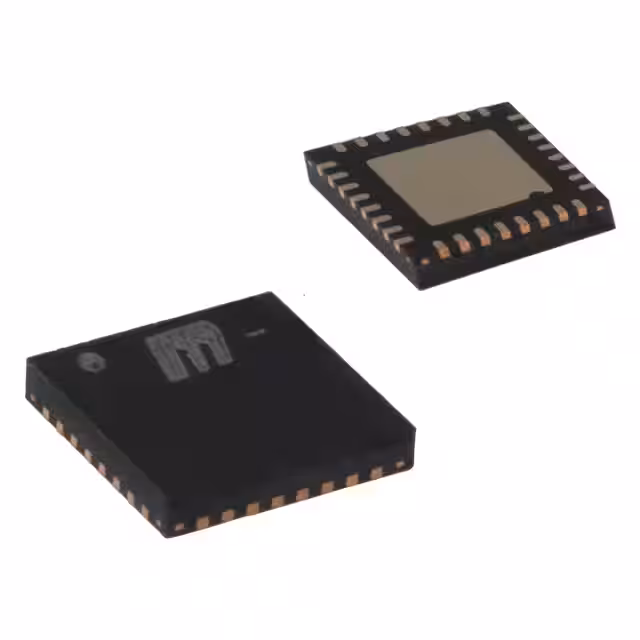

IC RF TXRX ISM<1GHZ 32VFQFN
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Receiving | 8mA ~ 12mA |
| Current - Transmitting | 8mA ~ 21.5mA |
| Power - Output | 11dBm |
| Voltage - Supply | 2V ~ 2.5V |
| AC and DC characteristics | |
| Frequency | 410MHz ~ 450MHz |
| Environment and package | |
| Memory Size | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| Other | |
| Base Product Number | MICRF506 |
| Data Rate (Max) | 200kbps |
| Mfr | Microchip Technology |
| Modulation | FSK |
| Product Status | Active |
| Protocol | - |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -113dBm |
| Serial Interfaces | SPI |
| Series | - |
| Type | TxRx Only |
