Melexis Technologies NVBelgium

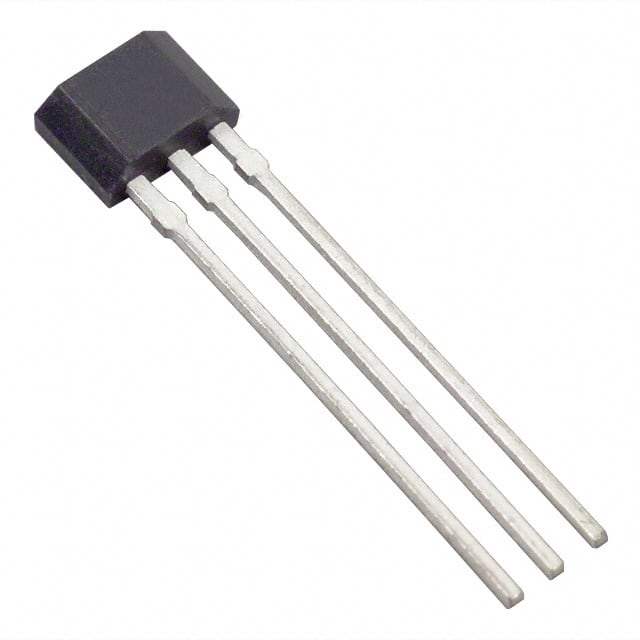

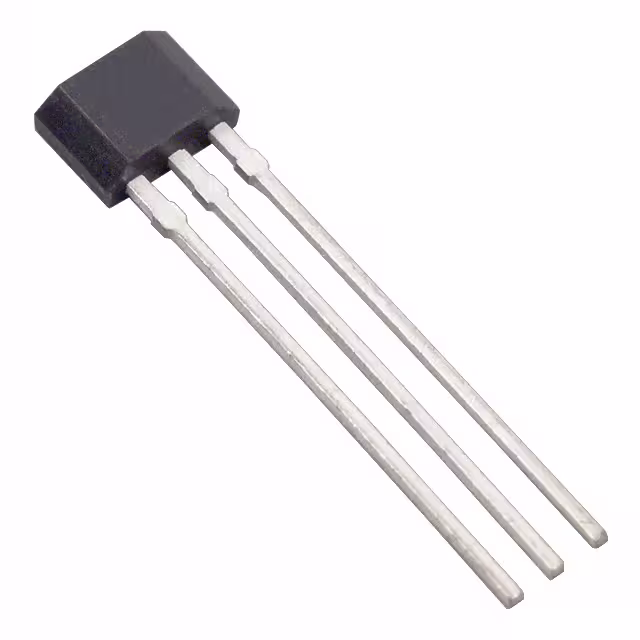

MAGNETIC SWITCH SPEC PURP TO92UA
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 25mA |
| Current - Supply (Max) | 6mA |
| Voltage - Supply | 3.5V ~ 24V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~150°C(TA) |
| Package | Bulk |
| Package / Case | TO-226-3, TO-92-3 Short Body |
| Supplier Device Package | TO-92-3 |
| Other | |
| Base Product Number | MLX90217 |
| Features | - |
| Function | Special Purpose |
| Mfr | Melexis Technologies NV |
| Output Type | Open Drain |
| Polarization | South Pole |
| Product Status | Active |
| Sensing Range | 400mT Trip, 50mT Release |
| Series | - |
| Technology | Hall Effect |
| Test Condition | -40°C ~ 150°C |
Documents
No documents are linked to this part yet.
